Product Description
This mechanical de-labeler (label remover) is used for removal of label paper on pure water bottles/PET bottle/HDPE bottles which sleeve label bottles.
Product Features
From the composition of the raw material label, the adhesive label is easier to remove. The de-labeling is mainly for the heat-shrinkable label. The patented blade structure, large diameter, low speed, and clever structural design solve the industrial problem, remove the label content and make it more Effectively reduce the breakage rate of the bottle mouth.

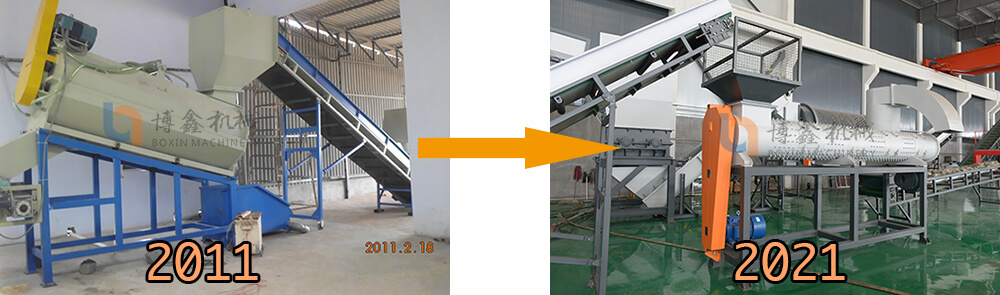

Our de-labeling machine has not only changed in appearance, but also continuously improved in technology. For round bottles, the de-marking rate can reach 95%, and for compressed bottles it can reach 98-99%.
The complete line also can be supplied after de-labeling, crushing, washing and drying. The clean flakes can make different products, like PET fiber, PET strap, PET sheets, PET bottles again etc.
Technical Data
LABEL REMOVER TECHNICAL | |||
Model | BXL1000 | BXL2000 | BXL3000 |
Capacity | 1000kg/h | 2000kg/h | 3000kg/h |
Motor (kw) | 15 | 30 | 45 |
Suction Label Motor (kw) | 4 | 4+4 | 5.5+5.5 |
Main Shaft Diameter (mm) | 550 | 700 | 800 |
Main Shaft length (mm) | 4800 | 5500 | 6000 |
Overall size (mm) | 5360 * 2150 * 3380 | 6250 * 1750 * 3420 | 6600 * 1850 * 3760 |
Off-standard rate | Compressed bottles 95%，Round bottles 98% | ||
