Located in Saudi Arabia, this project converts sand-contaminated blue & white bottles into high-quality fiber-grade PET flakes for local spinning enterprises.

MaterialPET Bottles

Capacity1300 kg/h

GradeFiber Grade

LocationSaudi Arabia

Challenge: Sandy & Mixed Material

The raw material consists of blue and white bottles collected locally, heavily contaminated with desert sand, oil stains, and food residue.

High Contamination: Bottles contain large amounts of mud and sand.
Manual Sorting Required: Customer initially relies on manual labor to remove PVC and non-PET items before crushing.
Strict Quality Standard: Final flakes must meet fiber-grade spinning requirements.

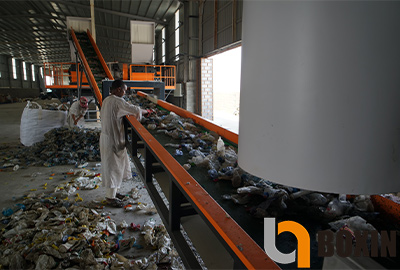

Manual sorting workers removing non-PET contaminants from conveyor belt in Saudi plant

The Boxin Solution

We delivered a 32 tons/day continuous washing line featuring high-efficiency separation and hot washing technology.

Cap Separation98%+ Separation Rate

Hot WashingRemoves Oil & Glue

By-Product ValueCollected Caps for Sale

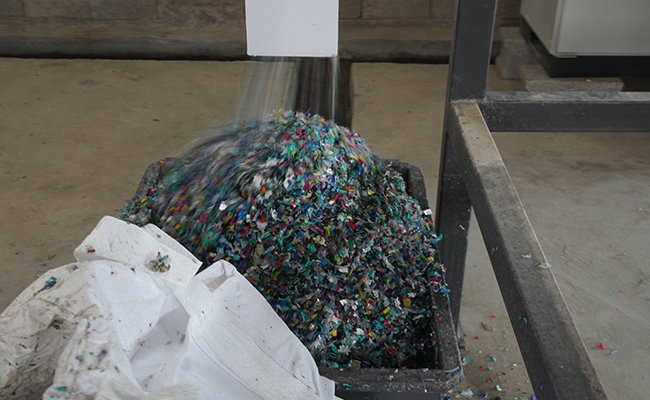

Cleaned PP/PE bottle caps separated by float-sink tank as valuable by-product

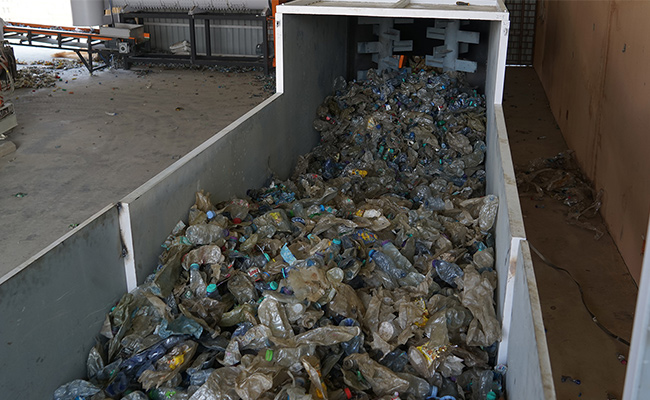

Heavily contaminated blue and white PET bottles with sand before sorting

Process Detail: Raw Material Condition

The incoming raw material is heavily contaminated. As seen in the image, the bottles are covered in desert sand and mud. This requires robust pre-washing and efficient manual or optical sorting before the crushing stage to protect blades and ensure final quality.

Transformation Result

From sandy waste to high-value industrial raw material.

Input waste: Sandy blue and white PET bottles

Input: Sandy Bottles

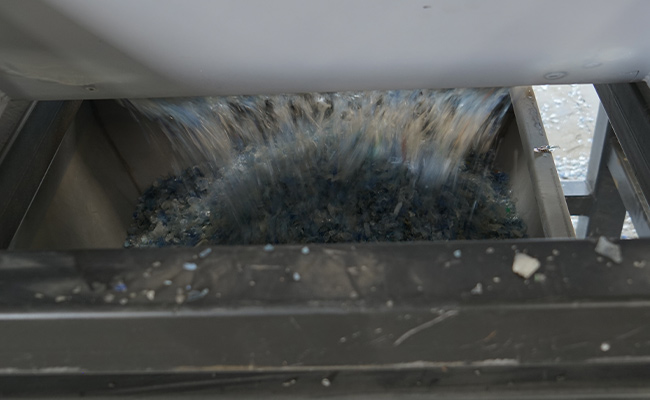

Output product: Clean fiber-grade PET flakes for spinning

Output: Fiber Grade Flakes

Site Gallery

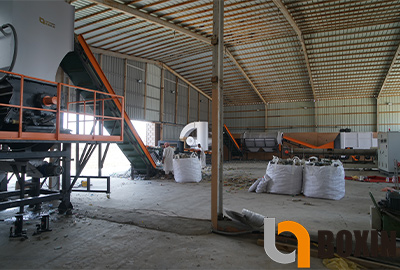

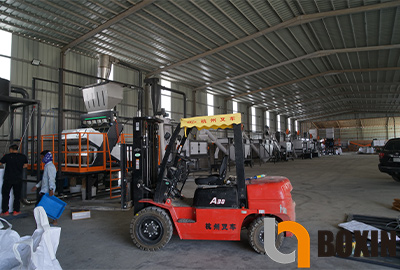

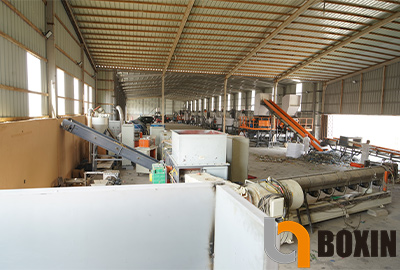

Overview of Boxin 1300kg/h PET washing line installation in Saudi Arabia

Bale opener feeding section of the PET recycling plant

High-speed friction washer section for deep cleaning PET flakes

Large float-sink separation tanks for removing caps and labels

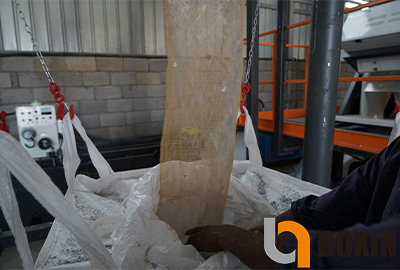

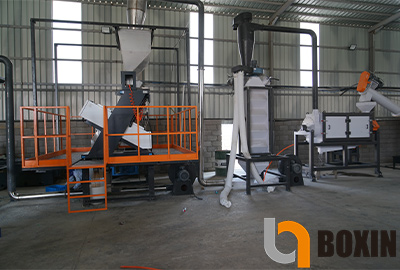

Drying system and big bag packing station for finished PET flakes

Electrical control panel cabinet for the entire washing line operational safety

Start Your Recycling Project Correctly

Get fiber-grade quality output with Boxin's customized washing technology.

See Boxin's PET Bottle Washing Solution

Includes ROI Analysis & Spare Parts Kit

FAQ: Saudi Project Insights

Q1: How does the line handle the heavy desert sand found in Saudi bottles?

A: We integrated a high-efficiency Trommel Machine and specialized Pre-washer at the beginning of the line. These units remove over 90% of loose sand and heavy mud before the bottles enter the crusher, significantly reducing blade wear and protecting downstream equipment.

Q2: Water is expensive in Saudi Arabia. How is water consumption managed?

A: Our system is designed with a closed-loop water circulation filtration system. Process water from the rinsing tanks is filtered and reused in the pre-washing stage. This design drastically lowers fresh water consumption while maintaining cleaning efficiency.

Q3: Can manual sorting achieve fiber-grade quality without optical sorters?

A: Yes, but it requires rigorous management. For this project, we designed extended manual sorting platforms with optimized lighting. Workers effectively remove non-PET materials (like PVC, metal) before crushing. The subsequent hot washing and float-sink tanks ensure the final flakes meet the purity standards for polyester staple fiber production.

Q4: What is the final moisture content of the flakes?

A: The line is equipped with a high-speed centrifugal dewatering machine and a hot air pipe drying system. The final PET flakes have a moisture content of less than 1%, making them immediately ready for the spinning or pelletizing process.
