Boxin provided a heavy-duty solution to process abrasive, tough woven cement bags, achieving < 3% moisture content while solving shaft tangling issues.
MaterialWoven Cement Bags
Capacity500 kg/h
LocationPakistan
Moisture< 3%
Project Background & Challenge
The client processes waste cement bags, which present two major pain points: high dust residue causing wear, and extreme toughness causing tangling.
- High Abrasion: Heavy dust/sand residue leads to rapid equipment wear.
- Tangling & Clogging: Tough woven bags wrap around shafts, causing frequent downtime.
- Quality Issue: High moisture content affects downstream pelletizing quality.
The Boxin Solution

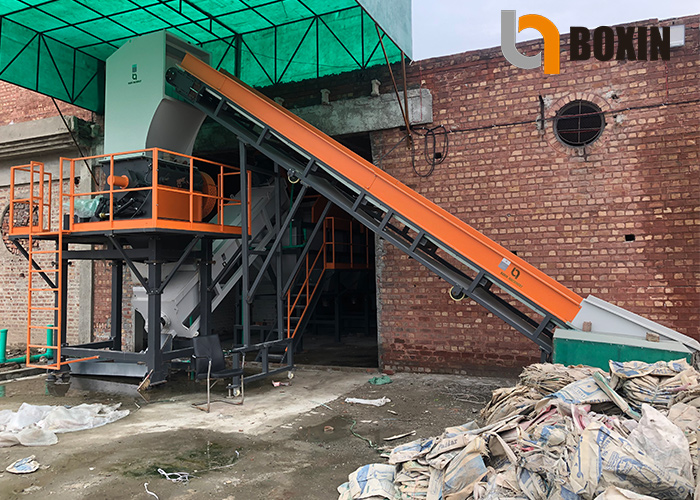

We deployed an "Integrated Residue Recovery + Washing" system with a revolutionary heavy-duty crusher.
Anti-Wear Pre-treatmentRemoves 90% Sand/Dust
D2 Cryogenic BladesHandles Jumbo Bags Easily

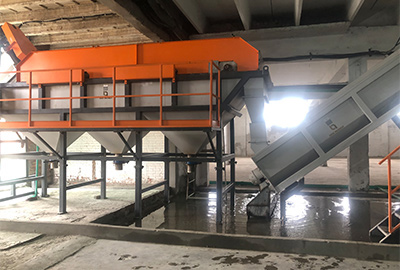

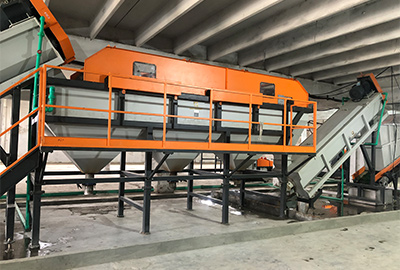

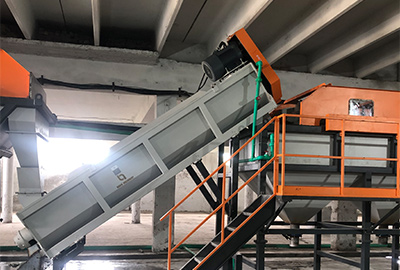

Deep CleaningFriction + Float System

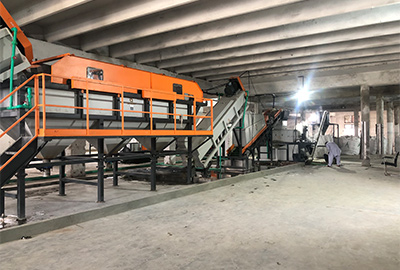

Key Operation Results
Achieving stable capacity with significantly reduced maintenance costs.

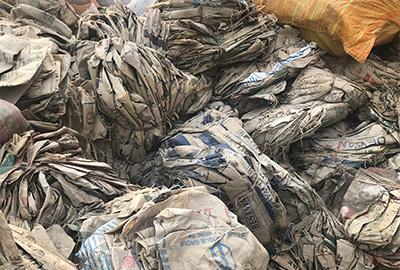

Input: Dirty Bags

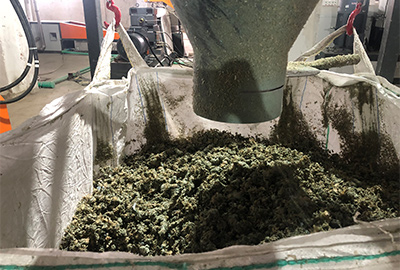

Output: <3% MoistureStart Your Recycling Project Correctly
Blade life extended by 20%, downtime reduced by 40%. Get the same efficiency for your plant.
See Boxin's woven bag recycling solution.
Includes ROI Analysis & Spare Parts Kit
FAQ: Common Project Concerns
Q1: My cement bags have huge amounts of powder residue. Will the water tank turn into concrete sludge?
A: This is a common concern. For this Pakistan project, we installed a specialized "Pre-washing & Sedimentation System" before the main washer. It separates 80% of the mud/powder instantly, preventing it from entering the fine washing stage. We also designed a continuous sludge discharge system at the tank bottom to avoid solidification.
Q2: Cement bags are abrasive. How often did the client need to change crusher blades?
A: Standard blades might fail in 3-5 days. However, by using our customized D2 Cryogenic Treated Blades, this client achieved a lifespan of 2-3 weeks between sharpening cycles, significantly reducing downtime and maintenance costs.
Q3: Is the recycled PP material dry enough for immediate pelletizing?
A: Yes. The line ends with a heavy-duty Squeezing Dryer. It reduces moisture content to <3%, which perfectly meets the requirements for our downstream pelletizing extruder, ensuring no bubbles in the final pellets.
Q4: Can this same line process other materials like jumbo bags (FIBC)?
A: Yes, the heavy-duty design allows it to process jumbo bags as well. However, since jumbo bags are tougher, we may adjust the crusher's motor load settings and screen size. Our engineers provided this client with preset configurations for different materials.
