Range Of Application
PP bag cleaning line compared to the treatment of film materials for the crushing and shredding machine requirements will be higher, because pp plastic makes the raw material more toughness, if the decomposition of the material after the material is not homogeneous enough a lot of pollutants will be intermingled with the material, it will increase the difficulty of the subsequent cleaning and cleaning effect is very poor.
Tonneau bag

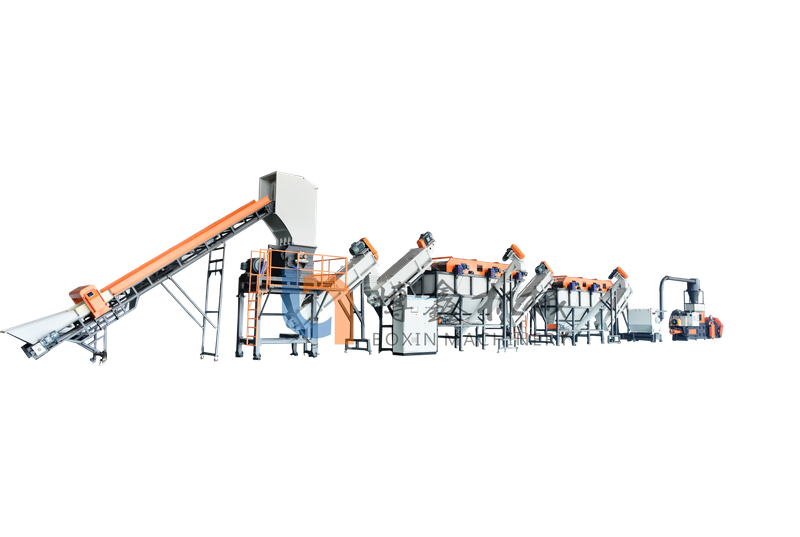

The waste dirty material is turned into clean shavings for pelletizing after crushing, friction washing, water washing, dehydration and hot air drying.
The line can be designed as “L” or “U” shape according to customer's workshop.
Our PP Woven Bag Washing Line has a processing capacity of 500~3000kg/h
Boxin's washing machines are all made of 304 stainless steel, with inner wall thicknesses 23%~47% higher than those of the industry.
20+ years of experience in the plastic recycling industry ensures technical support for after-sales issues
Boxin provides pre-sales factory inspection, after-sales on-site installation and commissioning and permanent online technical support.
Boxin is committed to using only genuine brand-name bearings and electrical components.
Purpose: Used to convey the woven bags to crusher for crushing.
Purpose: Special shaft design suitable for crushing woven bags. Crush the woven bag to the desired size. Easy to wash to to next process (Remark: This model crusher is suitable for crushing ordinary woven bags. If jumbo bags mixed with the woven bags, it need to option to another model crusher, at the same time, the motor power should be increased accordingly.）
Purpose: Evenly transport the crushed woven bag flakes to the next process.
Purpose: The high speed friction washer applies the corresponding blade hitting force to the material at the most suitable rotation speed to achieve the best washing effect.
Purpose: The washing tank rollers are designed for high pressure underwater washing. Maximum removal of residual impurities. Separation of materials with different specific gravity. (Heavy slag with a specific gravity greater than water settles to the bottom of the washing tank. Then the heavy slag is discharged through the bottom screw. The specific gravity of the woven bag is less than water. So suspended in water). The discharge roller is of claw type design. Ensure uniform discharge and control water content at the same time.
Purpose: Evenly discharge the heavy slag settled at the bottom of the floating washer(Sedimentation separator).
Purpose: The friction washer applies the corresponding blade hitting force to different materials at the most suitable rotation speed to achieve the best washing effect.
Purpose: The washing tank rollers are designed for high pressure underwater washing. Maximum removal of residual impurities. Separation of materials with different specific gravity. (Heavy slag with a specific gravity greater than water settles to the bottom of the washing tank. Then the heavy slag is discharged through the bottom screw. The specific gravity of the woven bag is less than water. So suspended in water). The discharge roller is of claw type design. Ensure uniform discharge and control water content at the same time.
Purpose: Evenly discharge the heavy slag settled at the bottom of the floating washer(Sedimentation separator).
Purpose: The friction washer applies the corresponding blade hitting force to different materials at the most suitable rotation speed to achieve the best washing effect. (Screen design of friction washer is stainless steel , during the high-speed rotation of the material, Separate impurities from woven bags，Impurities are discharged through the small holes in the screen)
Purpose: The material entering the de-watering machine will be hitted by the vanes, evenly break up. Centrifugal force caused by high-speed rotation. Remove maximum moisture.
Purpose: For packing the washed woven bag flakes into bales. Reduce material volume, easy to transport .
Model | BXB-300 | BXC-500 | BXC-1000 | BXB-1500 | BXC-2000 |
Output（KG/H） | 300 | 500 | 1000 | 1500 | 2000 |
Installed power（KW） | 100-130 | 130-160 | 180-260 | 280-320 | 350-450 |
Water consumption（T/H） | 2-3 | 4-6 | 6-8 | 8-10 | 10-15 |
| Labor requirements | 2-3 | 2-3 | 3-5 | 3-5 | 4-6 |
30×4×5 | 40×4×5 | 45×6×5 | 48×6×5 | 55×7×5 |
Other models welcome to inquire.
