Range Of Application

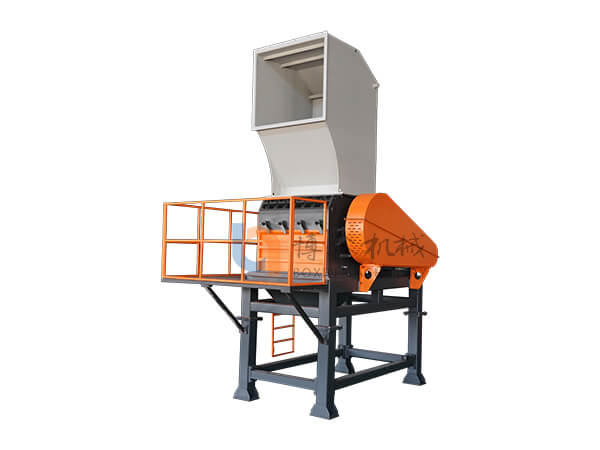

Plastic bottles and films grinder/shredder series is suitable for PET/PP/PE Bottles, ABS/PS Plastic Crusher
Used for the PET bottle, Plastic bottle, buckets, hollow containers, and so on plastic; Its with special structure design, will have more capacity with less power consumption.
Product Features
1. Frame is made by solid square tube steel.
2. Shaft is made by 45# steel with quenching treatment.
3. Easy-disassembling design, chamber is opened by motor automatically, which is simple and labor-saving to clean and maintain, and also convenient to change the blades.
4. Bearing house installed outside of the crusher chamber so no dirty goes inside which prolong the lifespan.
5. Machine upside chamber is higher and covered by belt no flakes popped out.
6. Blades are made by famous brand D2 from USA top quality.
7. Special designed cross-type cutter structure ensure high capacity and low power consumption.
Technical Data
Model | BXE1-500/800 | BXE1-650/1000 | BXE1-750/1200 | BXE1-750/1400 | BXE1-800/1600 |
Capacity (KG/H)
| 400-600 | 900-1200 | 1400-1600 | 2000-2200 | 2400-2700 |
Motor Power (KW)
| 37 | 55/75 | 90/110 | 110/132 | 160/185 |
Rotary Knives (PCS)
| 6 | 6/10 | 10 | 10 | 10 |
Fixed Knives (PCS)
| 4 | 4 | 4 | 4 | 4 |
| Main shaft rotation diameter (mm） | 500 | 650 | 750 | 750 | 800 |
