Range Of Application

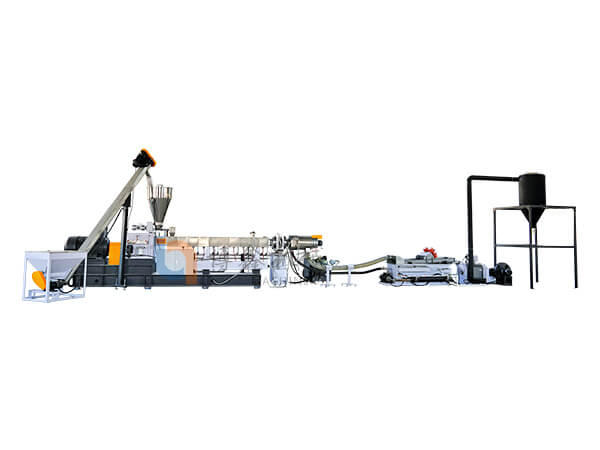

The PE/PP Rigid Material Die-Face Cutting Pelletizing Line has two kinds of types.
One is the BX-DJ Series Single Stage Compacting Die-Face Cutting Pelletizing Line which is used for HDPE/LDPE/LLDPE/PP rigid material. If your material is more clean (not dirty), you can use this type.
Other is the BX-SJ Series Double Stage Compacting Die-Face Cutting Pelletizing Line which is used for HDPE/LDPE/LLDPE/PP rigid material. Compared with single stage, double stage works more stable, produces more clean and more density granules.
We can design the layout according to customers' workshop.
Product Features
• Gear box: high-torque design; low- noise; smooth running.
• Equipped with a force feeder and hydraulic screen changers according to material’s special character, it can get a better
capacity and save more power.
• Vacuum or common gas exhaust system, which help getting rid of damp, waste gas, impurity, can ensure a more stable extrusion and more solid pellets.
• Stainless steel made water cooling tank, blowing dryer and silo
Technical Data
Single Stage of PP/PE Flakes Pelletizing Line:
Model | BXB2-100/120 | BXB2-120/130 | BXB2-130/140 | BXB2-150/160 | BXB2-160/180 | BXB2-180/200 |
Capacity(KG/H) | 260-360 | 350-450 | 450-550 | 500-650 | 750-850 | 800-1000 |
Install Power(KW) | 185 | 250 | 300 | 400 | 505 | 595 |
Labor requirements | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 | 3-4 |
Overall Size（L*W*H） | 18×5.5×4 | 21×5.5×4 | 23×5.5×4 | 25×6.5×4 | 26×6.5×4 | 28×6.5×4.5 |
