CE, ISO9001 Certified

500-5000kg/h PET Bottle
Washing & Recycling Line

Turn post-consumer baled PET bottles into High-Purity, Fiber Grade, Food-Grade ready Flakes. Impurity < 100ppm.

✔ Mechanical Label Remover:

>98% Label peeling efficiency.
✔ Hot Washing Tech:

Complete removal of glue, oil, and organic residue.
✔ Factory Direct:

Customized for PSF (Fiber) or B2B (Bottle-to-Bottle) applications.

Get Plant Layout & Quote

Trusted by Recyclers in 50+ Countries:Scroll down to view Turnkey Layout & Machine Specs▼

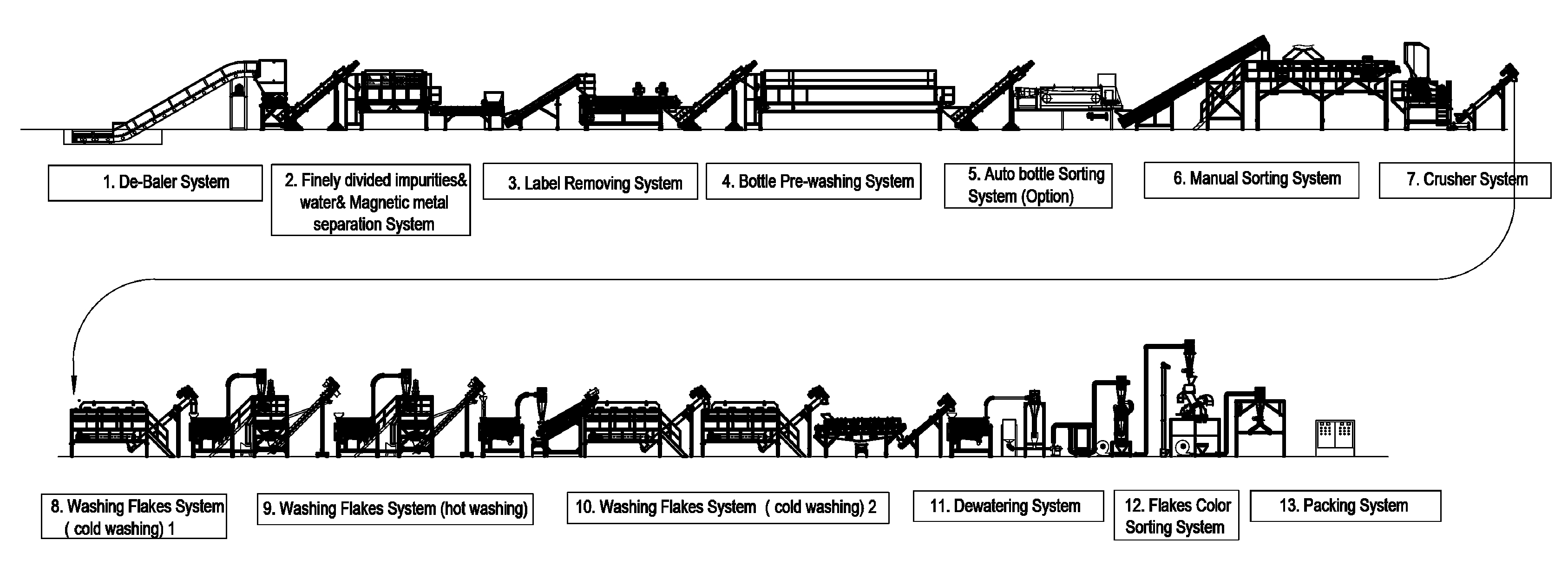

Complete PET Recycling Systems

From de-baling to intensive hot washing and final zig-zag separation. A true turnkey solution.

500kg/h PET Bottle Washing Line

Suitable for recyclers with a stable supply of single or dual-color feedstock (bales or loose bottles).

Get Quote

Fiber Grade PET Bottle Washing Line

This series is the primary choice for most recyclers, meeting the established rPET demand from downstream filament and staple fiber producers. Additionally, the fiber-grade line is designed to be upgradable to Sheet or AAA grade in the future.

Get Quote

Bottle-to-Bottle Recycling (Food-Grade) PET Bottle Washing Line

As bottle-to-bottle technology matures, the demand for food-grade PET flakes has surged. However, the minimum feedstock requirement for stable food-grade production is (MRF pre-sorted PET bales).

Get Quote

Pet Bottle Flakes Pelletizing Machine

Featuring a parallel twin-screw structure and forced vacuum degassing, this system offers superior mixing performance. It is not only suitable for standard PET pelletizing but can also be equipped with auxiliary devices for material modification.

Get Quote

Guaranteed Output & Technical Specs

Industrial-grade machinery designed for European quality standards.

PET Flake Quality Reference

Moisture Content<1%

Label<20ppm

PVC20-50ppm

Color PET50ppm

Glue<10ppm

PHNeutral

PP/PE<20ppm

Bulk Density0.28-0.3 g/cm³

Metal<20ppm

Flake Size8-14mm

PET Bottle Washing Line Specifications

Model

Capacity (kg/h)

Water (T/h)

Power (KW)

Steam (T/h)

Install Size (m)

BXP-500

500

3 - 4

100 - 130

0.3

35 × 5 × 5

BXP-1000

1000

4 - 5

180 - 220

0.5

45 × 6 × 6

BXP-2000

2000

6 - 8

350 - 400

0.8

60 × 6 × 6

BXP-3000

3000

8 - 10

480 - 550

1.0

75 × 7 × 6

BXP-5000

5000

12 - 15

700 - 800

1.5

90 × 8 × 7

* Note: Data is for reference only. Steam consumption depends on hot washer configuration; Water consumption depends on whether a water recycling system is installed.

Investment Transparency:
What Determines the Price?

We customize the PET line based on your raw material status and target output grade:

1

Target Application Grade

Compared to standard PSF (fiber grade), producing bottle-to-bottle (food grade) flakes requires more intensive hot washing and optical (material/color) sorting modules, along with an SSP system to increase the IV (Intrinsic Viscosity).This is an extremely high fee.
2

Degree of Automation:

Fully integrated auxiliary equipment—including whole-bottle optical sorting units, automatic chemical dosing systems for hot washing, PLC control panels, and automated weighing and bagging machines—can be incorporated into the recycling line to minimize labor costs. However, this will significantly increase the initial capital expenditure (CAPEX).
3

Core Component Materials:

This factor determines both the initial procurement cost and the long-term durability of the production line. A mature PET bottle washing line typically consists of over a dozen components; if any single component requires maintenance, the entire production line will face downtime.

Reference Price Range (FOB)

500 ~1000kg/h PET Washing Line$90,000 – $140,000

2,000 kg/h Fiber grade PET Washing Line$280,000 – $360,000

3,000 kg/h Food grade PET Washing Line$780,000 Start out

Get Your Precise Quote →

Engineered for High Purity

Boxin engineers resolve the biggest headaches in PET recycling: Stubborn Glue, PVC Labels, and Cap Separation.

>95% REMOVAL

Label Removal Tech

Mechanical Label Scraping

Custom-designed rotor blades effectively peel off shrink sleeves and PVC labels before crushing, protecting the flakes from PVC contamination.

GLUE & OIL FREE

Hot Wash Tech

Steam Hot Washing

Maintaining 85-90°C water mixed with chemicals to thoroughly dissolve adhesives and stubborn organic residues.

PERFECT SEPARATION

Sink Float Tank

Extended Sink-Float

Optimized tank length guarantees sufficient retention time, ensuring 100% separation of floating PP/PE caps from heavy PET flakes.

<100 PPM

High Purity Flakes

Ultra-Low Impurity

Final Zig-Zag air classification removes micro-dust, ensuring flakes meet the strict standards for Polyester Fiber or B2B pelletizing.

"We are a genuine manufacturer based in Zhangjiagang, not a trading company. You are welcome to visit our facility to inspect the prototype specifications."

Schedule Factory Visit

Proven PET Success Worldwide

From Mexico to Southeast Asia, see how Boxin PET lines empower the circular economy.

📍 Vietnam

Bottle-to-Bottle Prep Line

Material: Baled PET Bottles
Output: 2000 kg/h
Purity: < 50ppm PVC

Challenge: Strict FDA food-grade requirements.
Solution: Double Hot Washer system ensuring zero glue residue.

📍 Saudi Arabia

PET to Polyester Fiber

Material: Post-Consumer Bottles
Output: 3000 kg/h
Application: PSF Production

Challenge: Sandy & Mixed Material
Solution: Automated Trommel and efficient mechanical label removal.

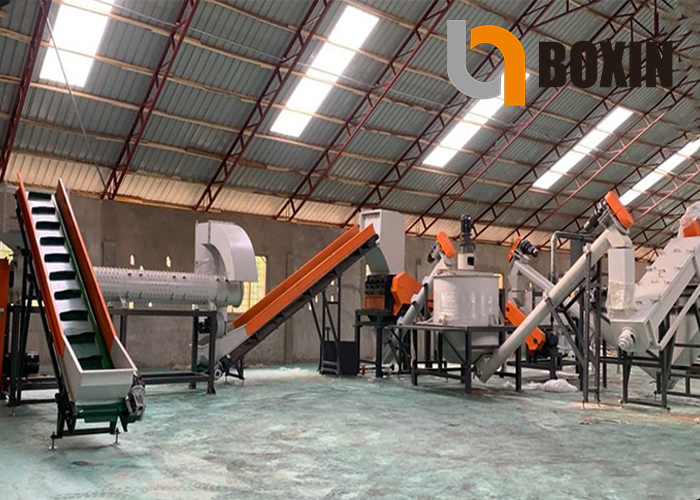

📍 Thailand

500kg/h Economy Line

Material: Mixed PET Bales / Scattered Bottle
Output: 500 kg/h
Drying: Centrifugal Dryer

Minimum production capacity, suitable for regions with low labor costs (typically without hot washing; finished flake quality relies on manual sorting).

📍 UAE

1000kg/h PET Line

Material: blue or white PET Bales
Pollution: less
Tech: Dry Pre-Cleaning

Suitable for processors with a stable supply of single or dual-color PET bottle bales, eliminating the need for costly optical sorting equipment.

Avoid Costly Mistakes:
Start with the Right Design

Purchasing the wrong PET production line will result in finished products being rejected by offtakers. Please allow us to design the optimal layout for you::

1. What's Your Raw Material?

Are the bottles baled or loose? Is there a contamination report provided by the MRF? Are the bales single-color or multi-color?

2. What are your finished product requirements?

What is your input capacity per hour, for example: 2000kg/h? Are you selling flakes for PSF (Polyester Staple Fiber) or food-grade packaging?

3. Get a "Guaranteed" Solution

We will send a customized CAD layout and exact quotation based on your specific requirements.

Get Free Quote

Response within 24 Hours
