Pet Bottle Recycling Washing Machine

Pet Bottle Recycling Washing Machine

Boxin Machinery's standard pet bottle recycling and washing line machine processes used pet bottles into pet flakes or high quality pellets.

As different configurations are used for different flake grades and finished product requirements, you can follow the tips below to see which recycling system meets your requirements.

1.Fiber Grade Polyester chips for use with chemical fiber products - View Our Fiber grade pet bottle washing line

2.Food grade polyester chips for packaging containers in contact with the human body, etc. - view our Food grade pet bottle washing line

3.Total solution for pelletizing waste pet bottles after processing into flakes - View our pet bottle washing pelletizing line

Availability:

Product Description

Product Description

Application

Wsate PET bottle

Bottle bales processed at the baling station

Unsqueezed PET bottles

PET瓶片清洗料

PET瓶片粒子(1)

unnamed

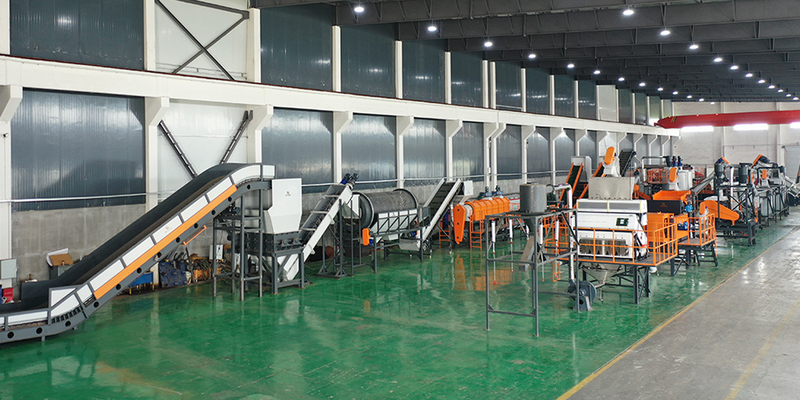

PET Bottle Washing systems

A1带logo

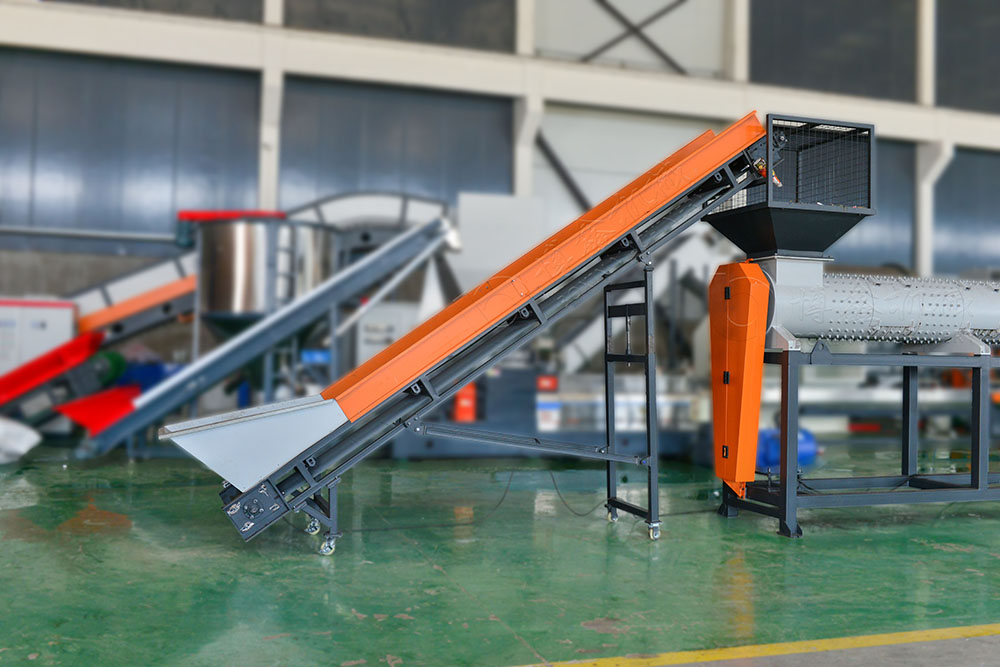

Belt Conveyor

Motor power: 2.2kw

Belt Material: PVC

Belt Width: 800 mm

Belt length: 5000 mm

Overall size: 5200 * 1000 *3365 mm

A2带logo

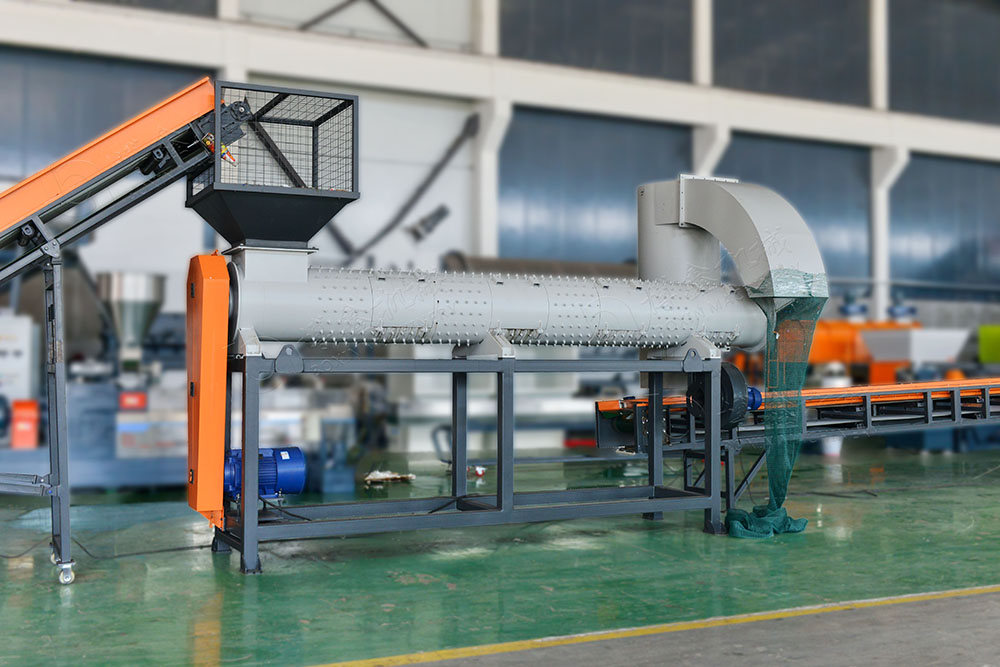

PET Bottle Label Remover Machine

Motor power: 15 kw

Suction label motor power: 4kw

Rotating diameter: φ550 mm

Length: 4800 mm

Overall size: 5030 * 1850 * 3150 mm

Exfoliation rate:

Compressed bottle: 95%

Uncompressed bottle off rate: 98%

A3带logo

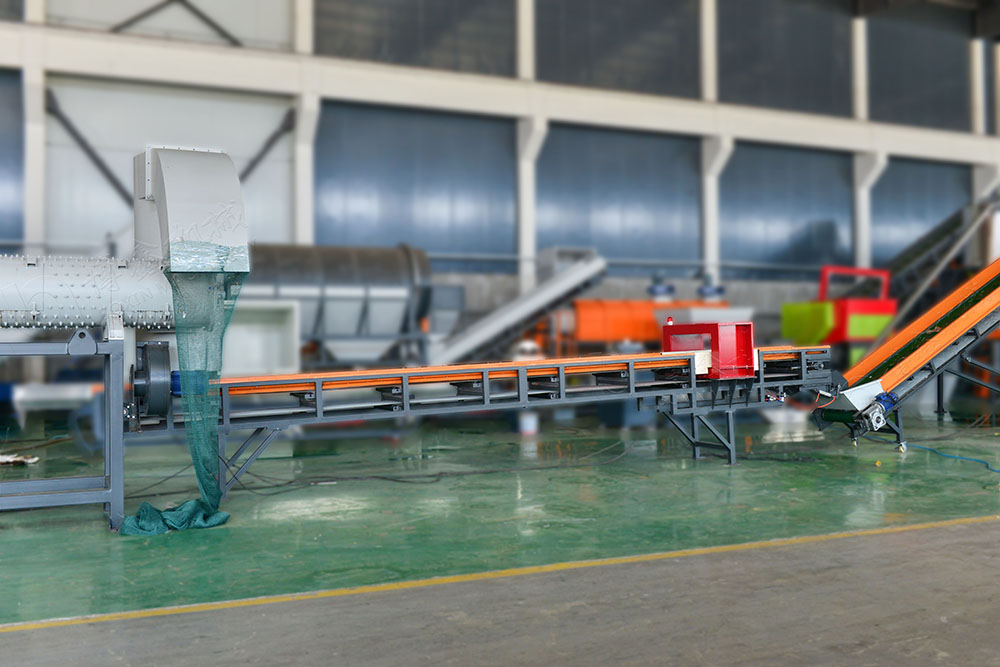

Manual Sorting Platform + Metal Detector

Motor power: 2.2kw

Belt Material: PVC

Belt Width: 800 mm

Belt length: 8000 mm

Overall size: 8300 * 1000 * 1000 mm

DSC_7543带logo

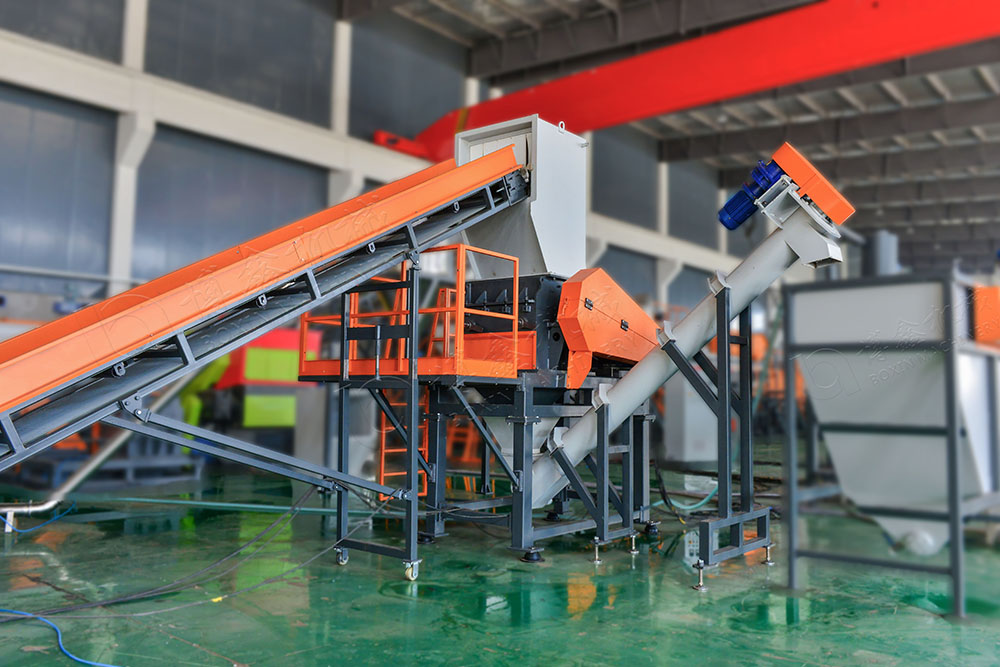

Plastic Bottle Crusher

Motor power: 55 kw

Number of rotating blades: 6

Number of fixed blades: 4

Blade material: D2

Screen hole size: φ16 mm

Rotor diameter:650mm

Rotor length: 1000mm

Output capacity:> 1000 kg / h

A5带logo

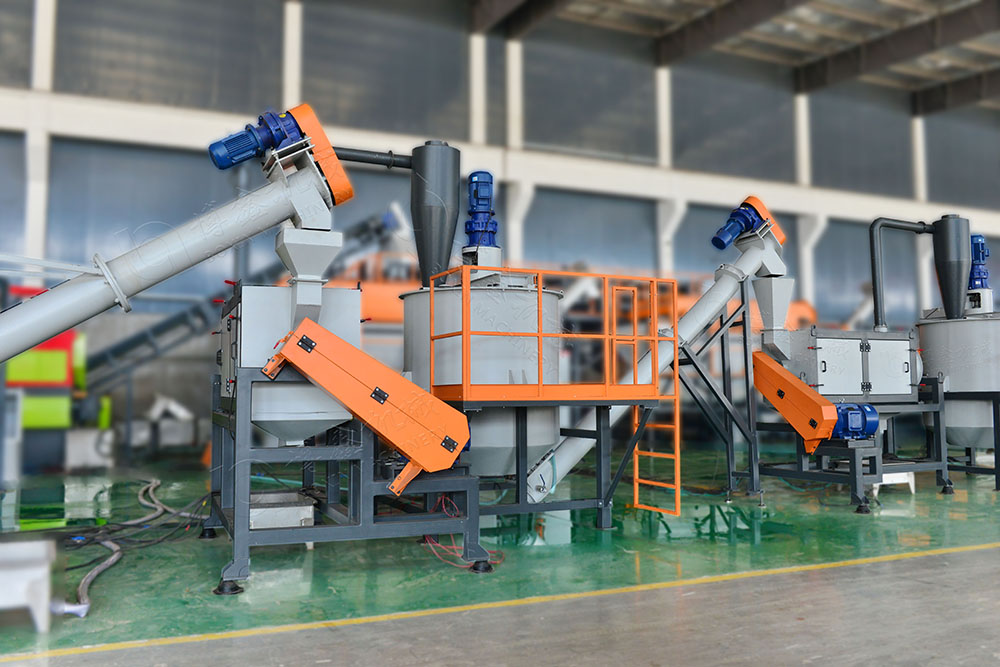

PET Bottle Flakes Hot Washing Machine

Motor power: 7.5 kw

Speed: 17 r / min

Diameter: 1900 mm

Length: 2250 mm

Volume: 5m³

a7带logo

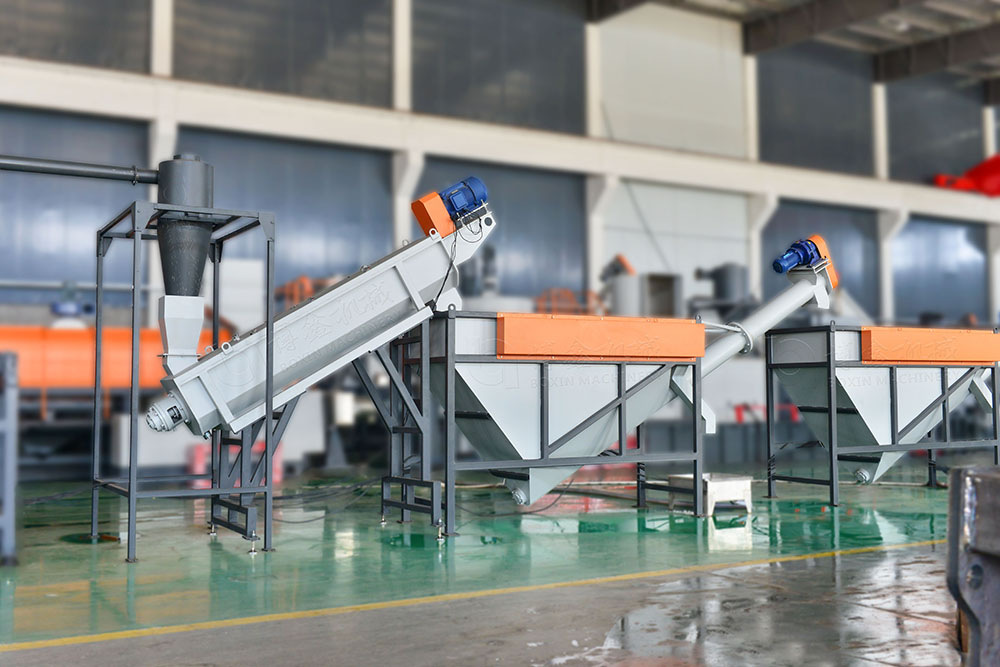

Floating Washer

Motor power: 3 kw

Length: 4500 mm

Rotating diameter: φ325 mm

Speed: 10-25 rpm

With automatic return water device

a9带logo

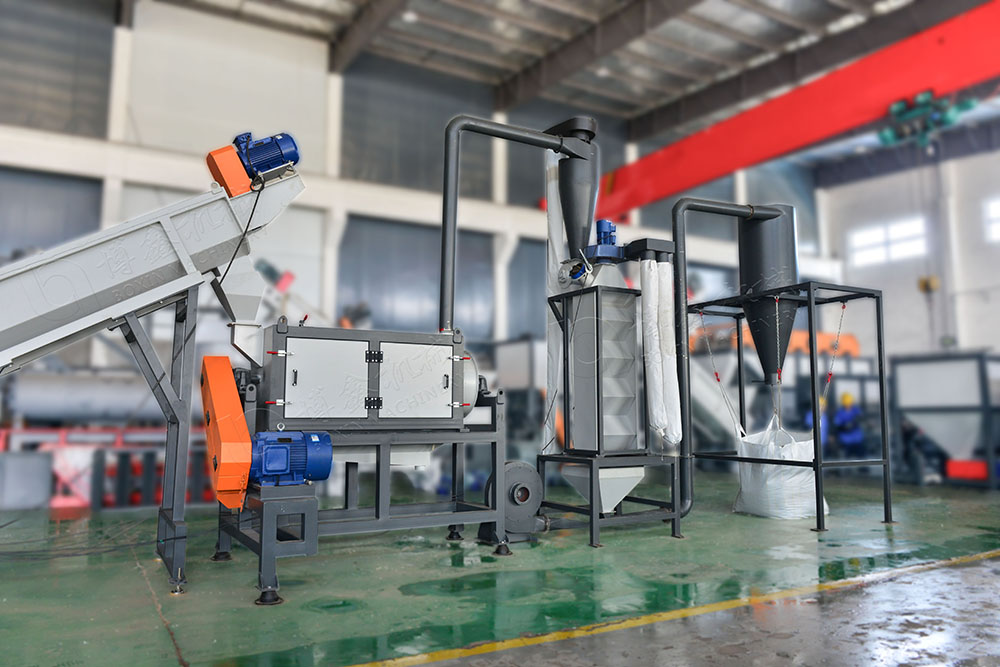

Dewatering, drying and packaging unit

Motor power: 30 kw

Rotating diameter: 500 mm

Length: 1800 mm

Speed: 2000 rpm

Bearing: NSK
