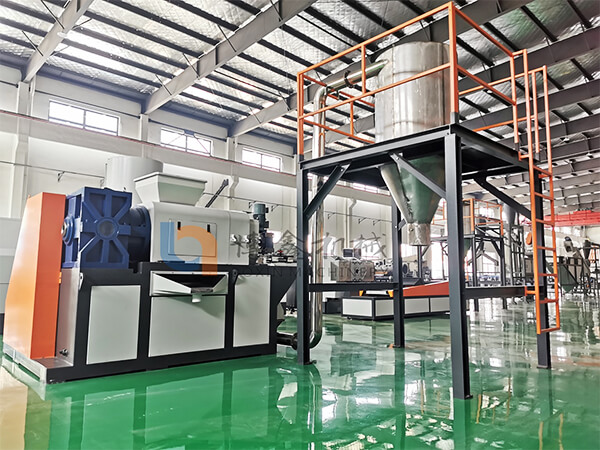

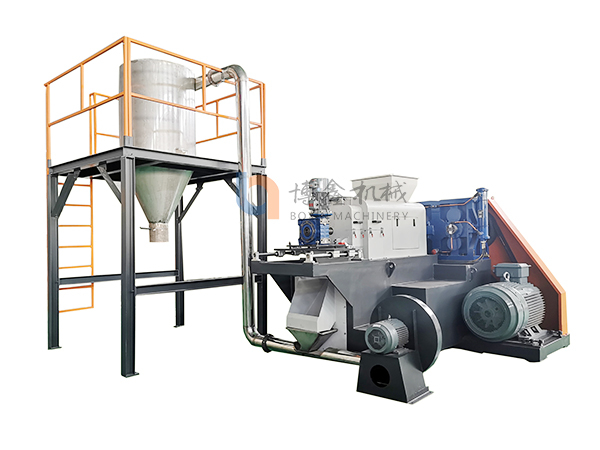

Plastic Film Squeezing Machine

This machine has two function: Squeezing and granulator.
Availability:
Quantity:
  • BOXIN


This machine has two function: Squeezing and granulator.


It is very mature technical now for Boxin machinery.


This Plastic film squeezing pelletizing machine is used for drying washed film, woven bags etc. and make it like granules. After that the granules can put into the extruder directly.


It is a full automatic Squeezing & dewatering Machine to the film and woven bags, with the screw squeezing and electrical heating, make the materials have high degree of drying and full plasticizing, low power consumption, high output. The final moisture is below 3-5%.



Equipped with the special high quality screw. Dewatering and drying the washed film scrap by the strong press and squeezing power.


Then agglomerating the film scrap by the self-friction heat. The heating mold equipped with high speed cutting blade, so the size of the final pellet is Irregular.


Squeezing-Machine


No

Model

BXS-300

BXS-320

BXS-350BXS-380

1

Capacity

300kg/h

500kg/h

700-800kg/h

900-1000kg/h

2

Main motor power

90kw

132kw

160kw

200kw

3

Pelletizer motor

3kw

4kw

5.5kw

11kw

4

Screw diameter

300mm

320mm

350mm

380mm
