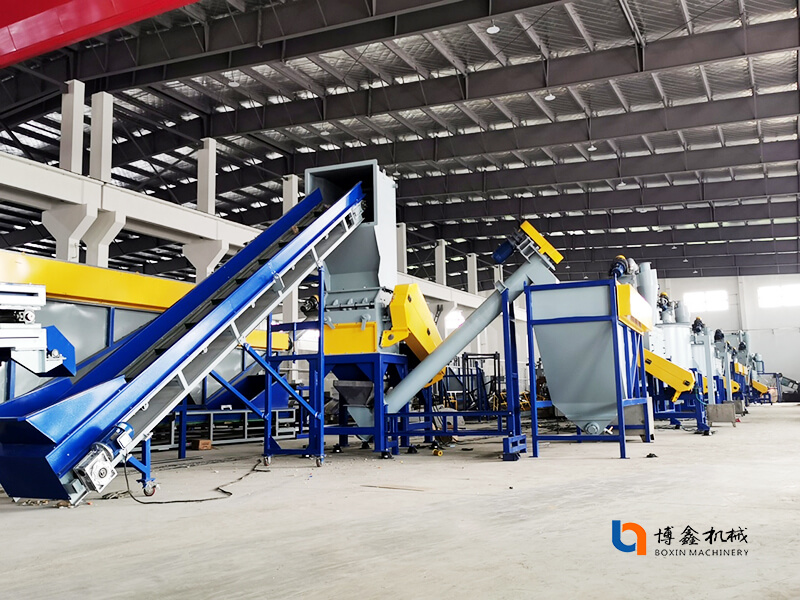

PET Washing Line Bottle To Bottle Stage To South Africa

Views:10     Author:Site Editor     Publish Time: 2021-06-17      Origin:Site


CASE09

Ship To South Africa

Capacity 500kg/h

Raw material: waste plastic pet bottle

Finished product: Clean PET flakes:

1. water content <= 0.7%

2. stacking density: 0.25-0.35 g/m³

3. flakes size: 6-14mm (the size can be design according to customer request)

8-12mm ≥ 95%

≥12mm: ≤ 2%

fine granule: ≤ 2%;

powder: ≤ 1%

Total electrical needed: about 280kw(actual consumption:(70%-80%)

Size:80м*6м*5м, the height of factory must be over 6M, production line can be placed in a line or an angle (Need to provide plant lay out drawing.)

Water needed: about 8-10t/h. Equip with water treatment if needed.


CASE09-1

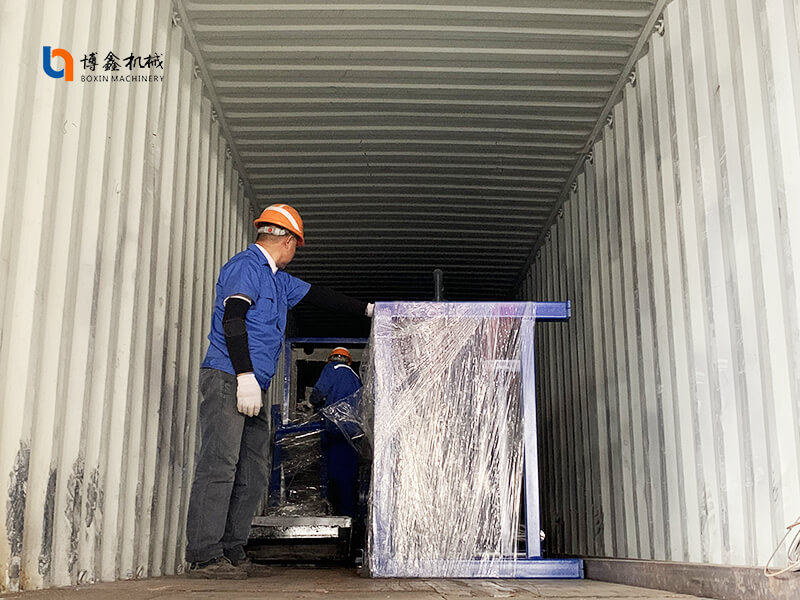

Loading and shipping.


CASE09-2

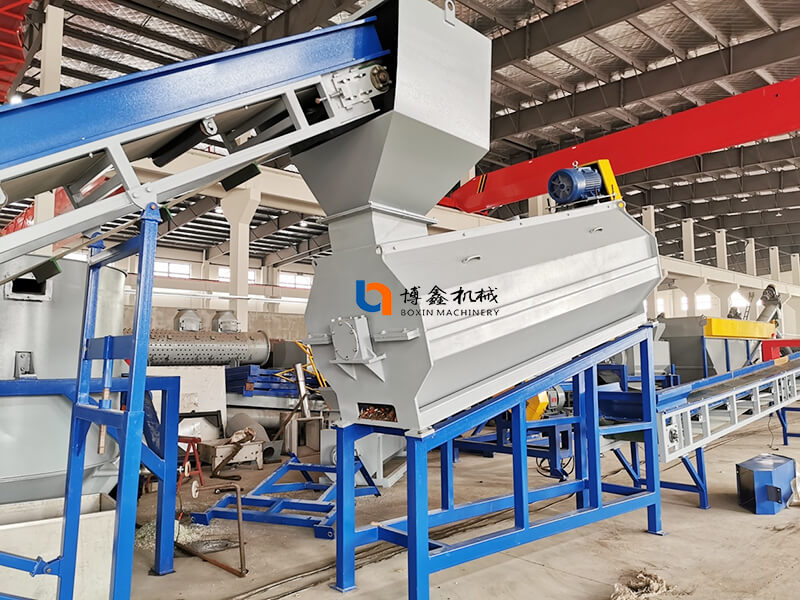

Pre-washer machine: Pre washing the plastic bottles before crusher.


CASE09-3

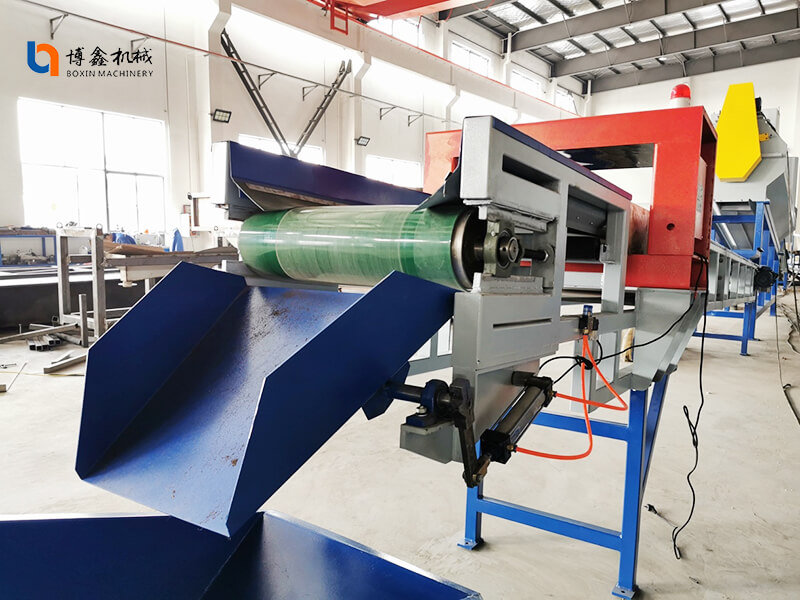

Metal detector and automatic separation device, When metal reaches the metal detector, it detects metal and sets the corresponding distance. When the metal-containing bottle reaches the end of the conveyor belt, it will automatically turn over and turn the metal and the bottle together.


CASE09-4

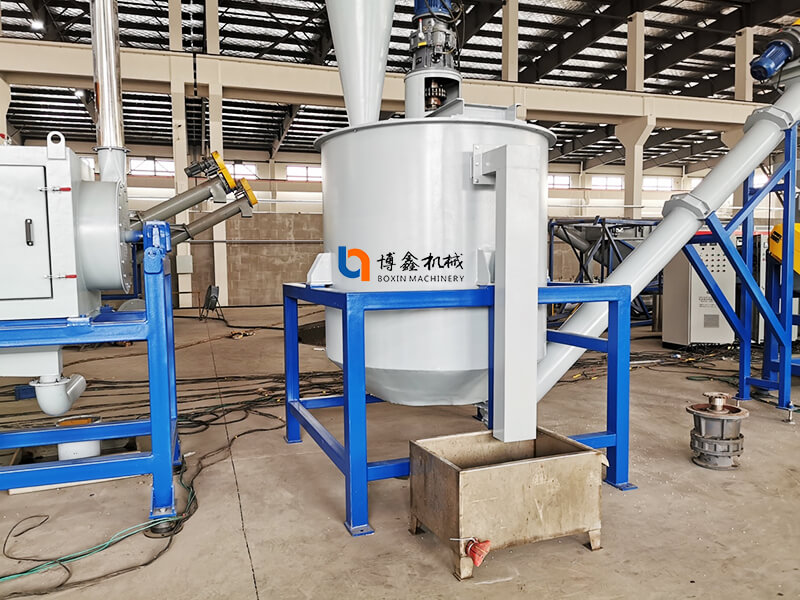

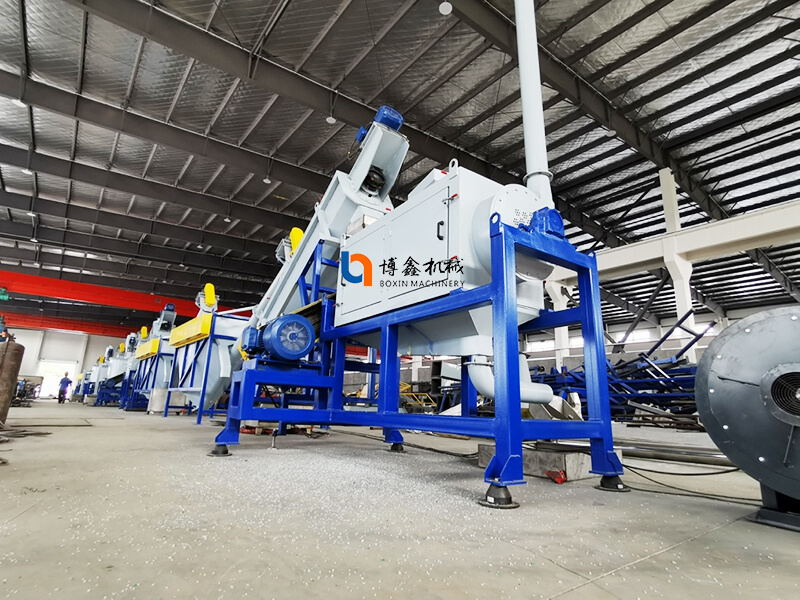

Steam washer (hot washer) : It will feed soda here , to make plastic flakes washed more clean. And outside covered Insulation. Can protect the temperature to continuously reach 90 degrees Celsius.

Our hot washer machine also can move out the some release bottle labels and caps here. It is very useful.


CASE09-5

Sedimentation tank also name cold washer, It is higher than other companies, this design will make plastic flakes to have enough time to stage here , then wash with water.


CASE09-6

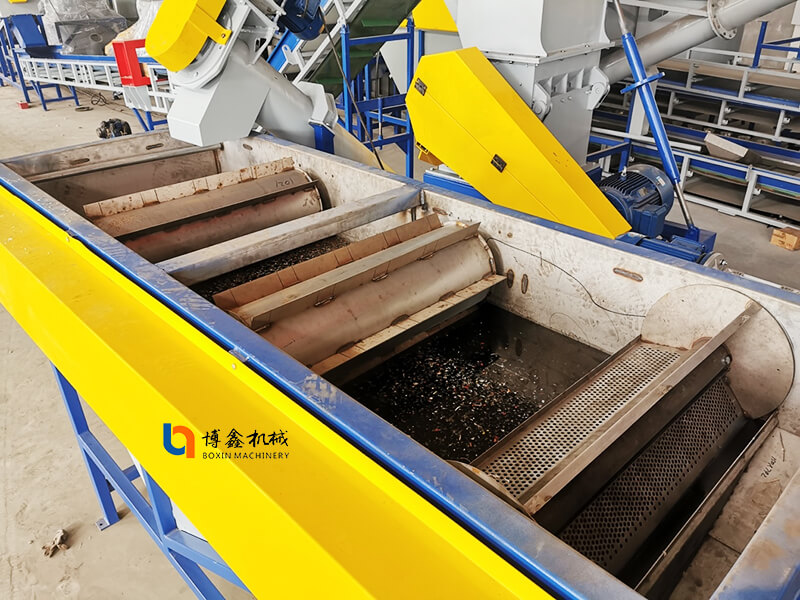

Inside of cold washer(Sedimentation tank). Normally 5 rollers here. The labels and caps will take out here too.


CASE09-7

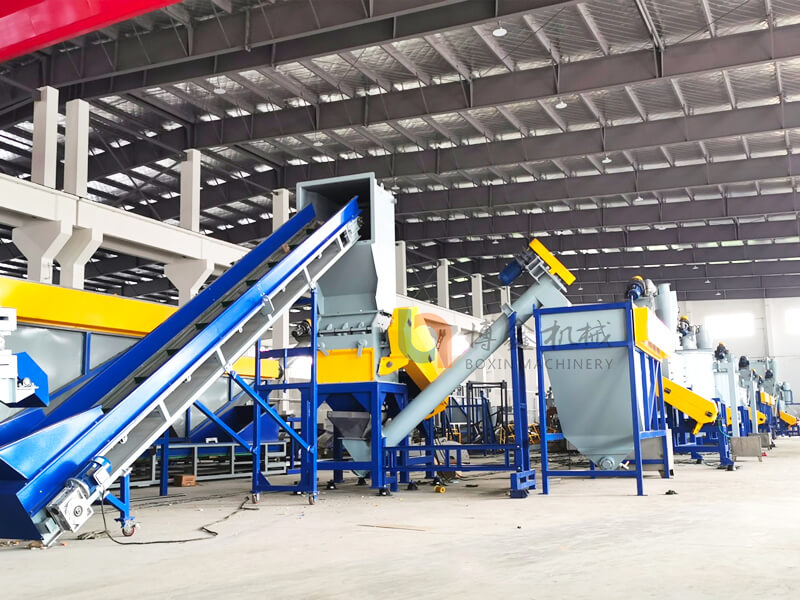

View the whole line from behind.
