HDPE Bottle Washing And Recycling Line

Views:5     Author:Site Editor     Publish Time: 2021-06-17      Origin:Site


CASE08

This production line Capacity is 1000kg/h.

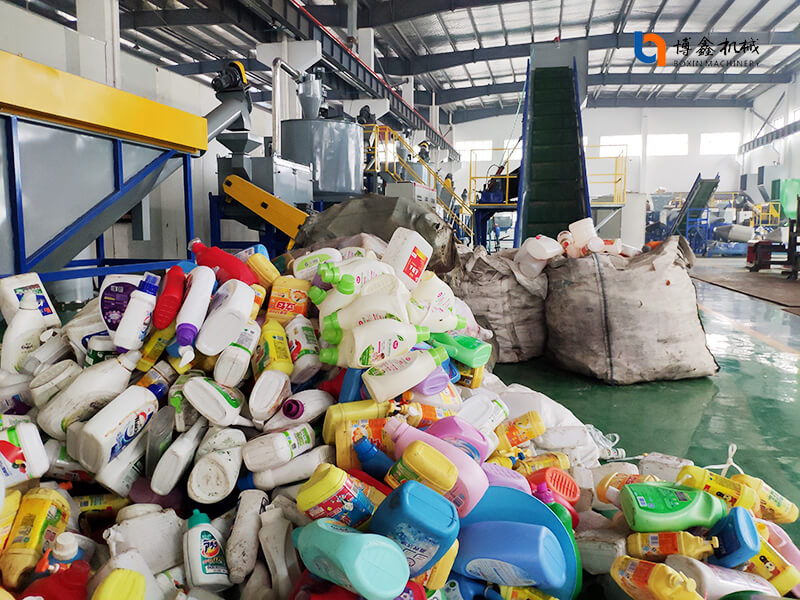

Suitable materials: PE bottles, PP hard materials.

Final product: clean material size 14mm. The size can be made according to customer requirements.

Labor: 3-4 workers per shift

Power consumption: 140kw, actual consumption is about 70% -80%

Water consumption: 3-5t/h


The complete line include below items:

No.

Name

Qty (set)

1

Belt conveyor

1

2

Crusher (including platform)

1

3

Friction washer

1

4

High speed friction washer

1

5

Floating washer (including platform)

1

6

Screw loader

1

7

De-watering machine

1

8

Silo

1

9

Control panel

1


CASE08-1

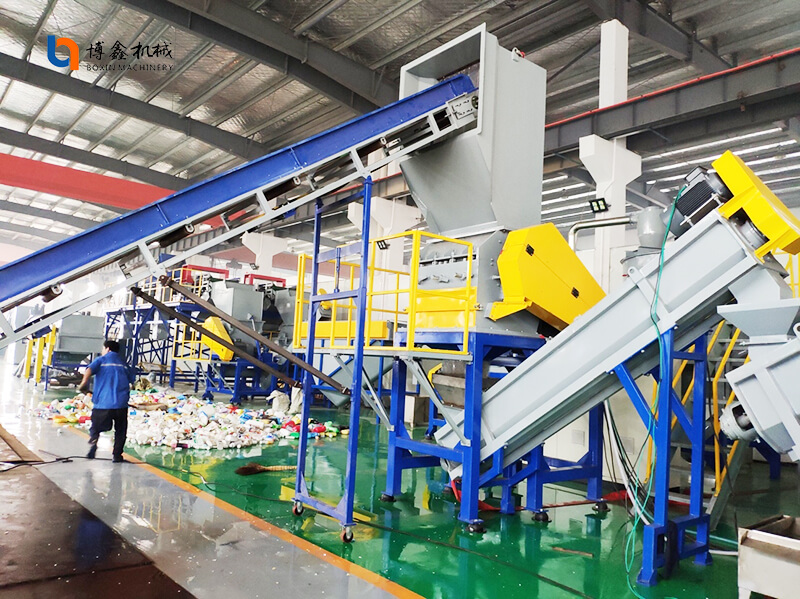

One 55kw Crusher can meet >=1000kg/h

10 rotating or 6 rotating blades, 4 fixing blades It depend your raw material and capacity ,we will suggest for you.


D2 brand blades.


The shearing angle between the movable knife and the fixed knife is more efficient in crushing, and it ensures the running direction of the material in the crushing chamber and reduces the friction of the material to the shell.


The special mechanism design and processing method ensure that the material will not leak from the gap between the screen and the shell. The strength of the shaft is specially designed during the material selection and heat treatment process, and the shaft fracture will never happen.


CASE08-2

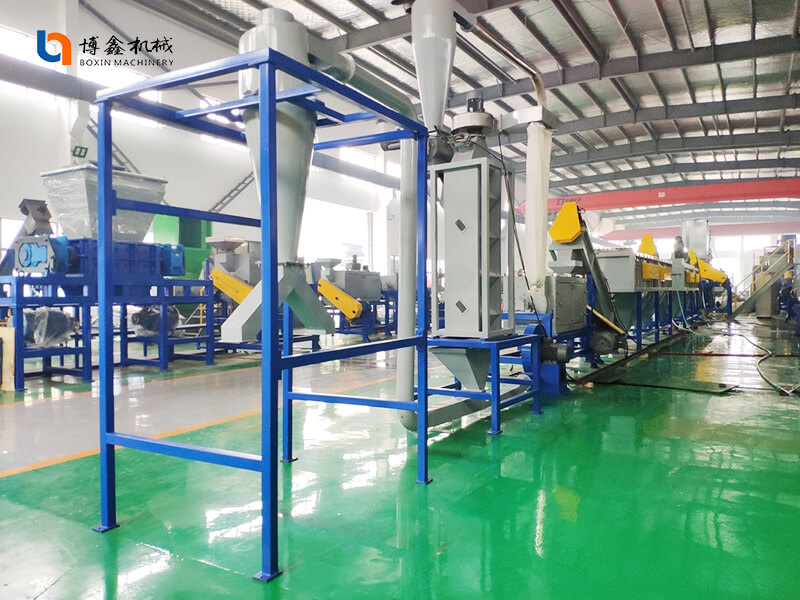

The full line review from back.
