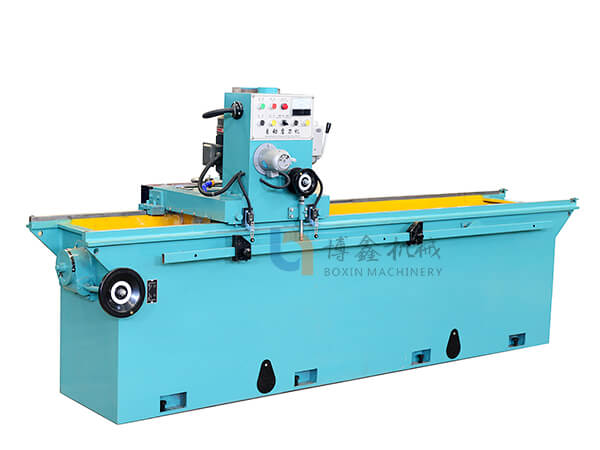

Technical Data
Blades length | 800mm | blades width | 250mm |
Blade platform rotation angle | 0-90° | Rotation angle of grinding head | ±90° |
Input voltage | 380V | Straightness of blade | <0.05mm/m |
Motor power of grinding head | 3KW | Knife grinder specifi cation | φ200×110×φ32 |
Motor speed of grinding head | 1440r/min | Total power | 4KW |
Power of reciprocating moto | 0.75KW | Machine overall size | 2200×1000×1250mm |
Reciprocating speed of sliding table | 0-12m/min | Machine weight | φ 1100Kg |
