500kg/h PP PE Woven/Jumbo Bags washing recycling line

Views:2     Author:Daisy Zan     Publish Time: 2021-09-30      Origin:Site

500kg/h PP Woven/Jumbo Bags crushing , washing, drying recycling line

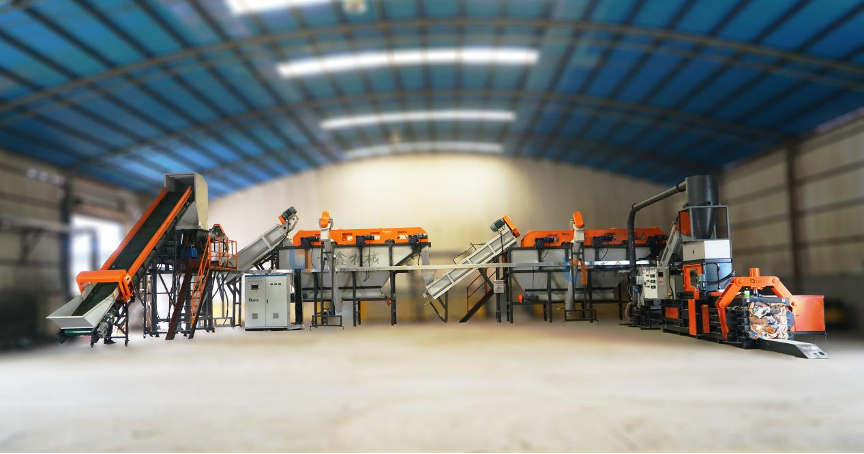

 PP woven bag washing line

1.2(1)

Location: Hubei Province,China

Item: 500 kg/h PP Jumbo Bags crushing ,washing, drying and recycling line

Raw material: PP woven/jumbo/big bags

Final product: clean plastic bags flakes

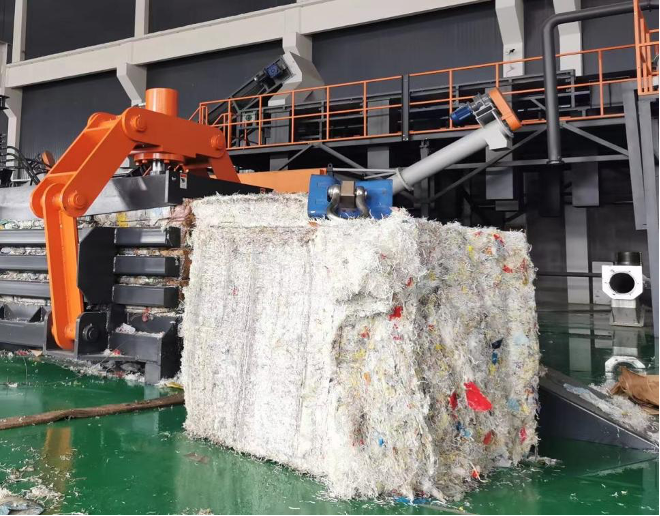

141632896375_.picfinal baled PP flakes

Power supply: 380V,3phases,50HZ

Workers needed: 3-4 workers per shift

Electricity consumption: about 187KW,heating power:8.5kw, actually needs 75%

Water needed: about 2-3t/h

The complete line include below items:

No.

Name

Qty(set)

1

Belt conveyor

1

2

Crusher

1

3

High-speed friction washer

1

4

Low-speed friction washer

1

5

Screw loader



1

6

Floating washing/Sedimentation tank

2

7

Centrifugal de-watering machine

1

8

Automatic baler machine

1

9

Electric cabinet

1

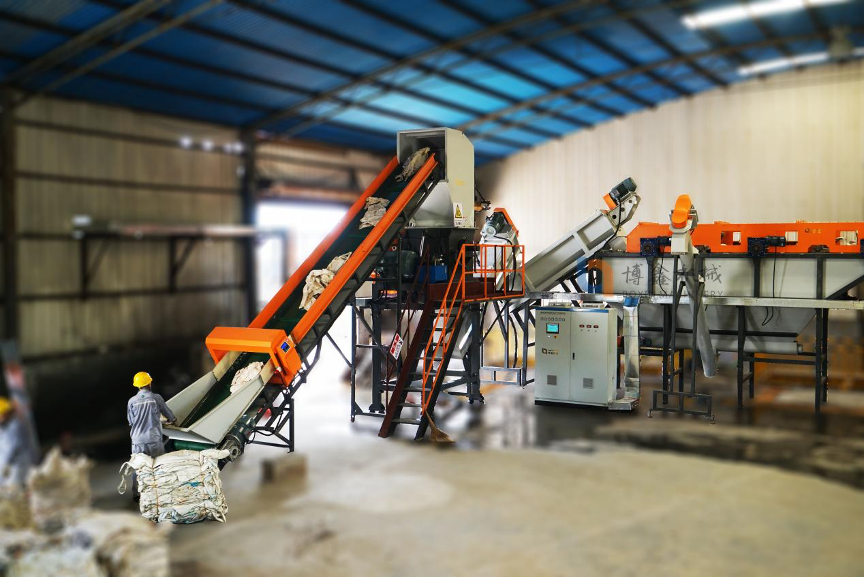

 PP washing line

9.1

Belt conveyor with metal detector : It can effectively sort metal and pp woven bag . Then the pp woven bag after the screening is transported into the crusher for crushing.

2.1

Floating washing/Sedimentation tank: clean materials, remove some sand and impurities, and separate materials of different densities.

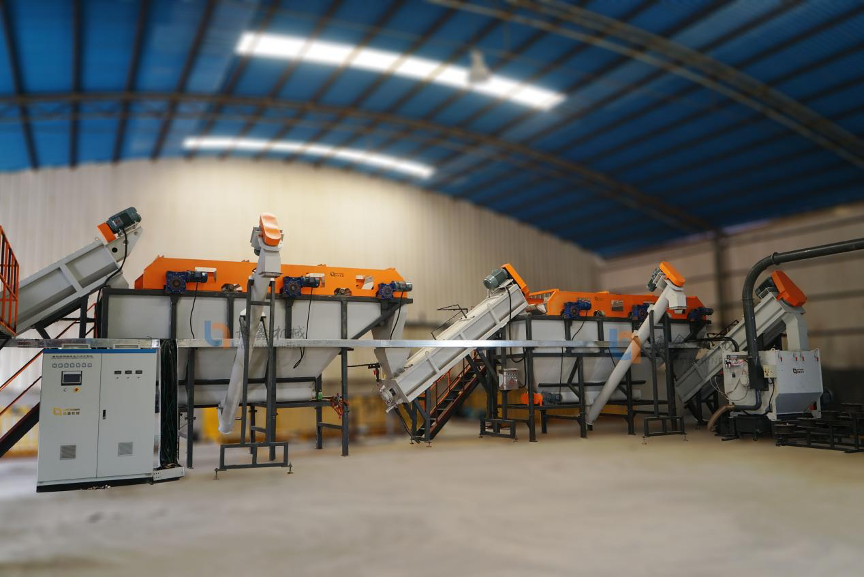

 PP floating washer

7

Centrifugal de-watering machine: It can effectively remove most of the water on the surface of the material.

8.1

Automatic baler machine:The final product will be packaged fully automatically.

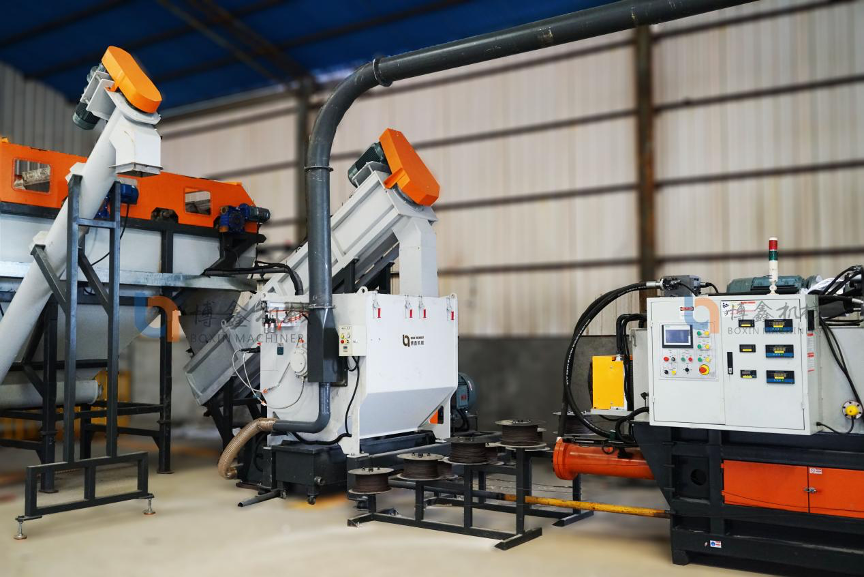

Plastic flakes dewatering machine
