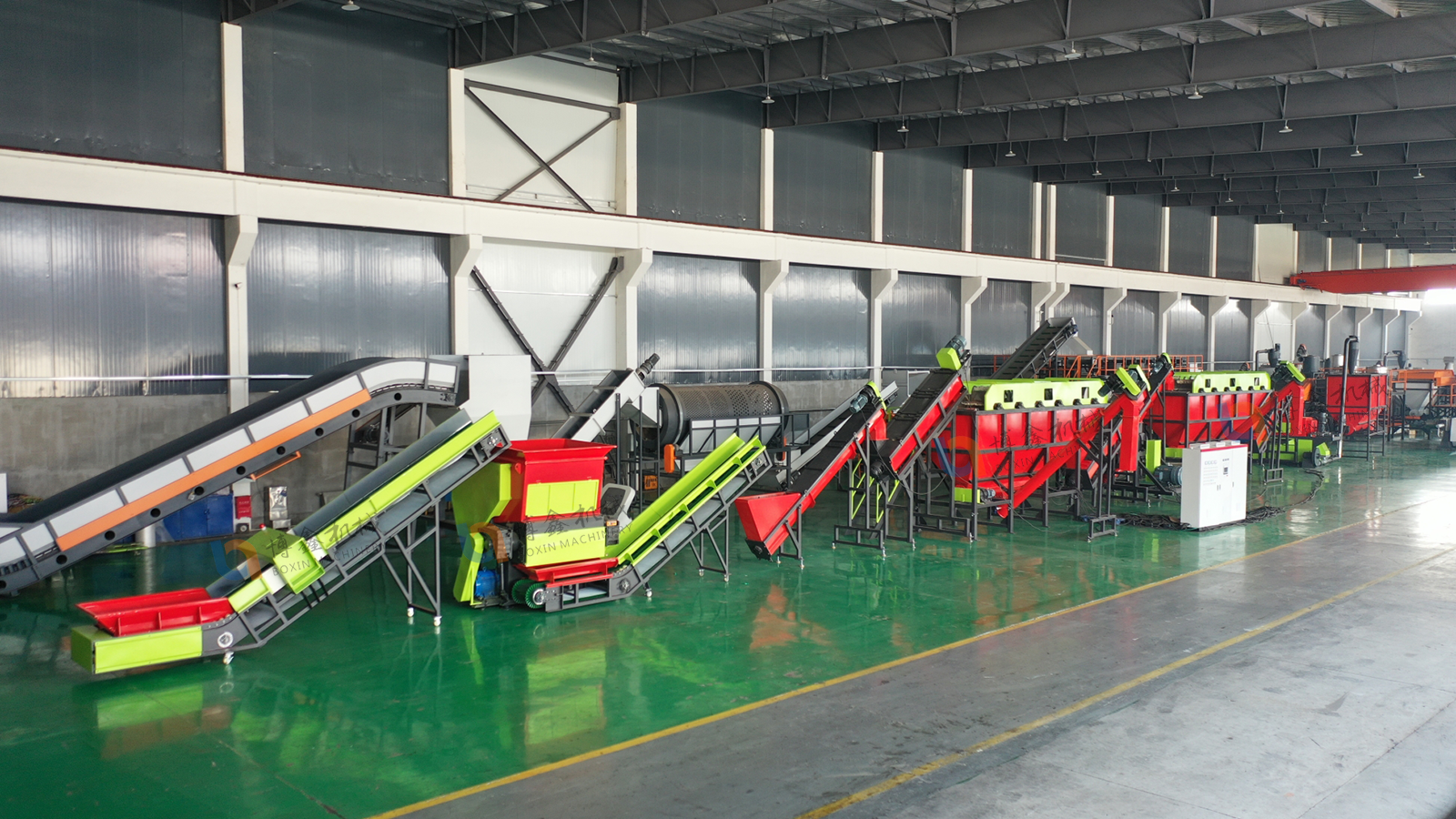

500KG/H PP woven bag washing squeezing recycling line
Delivery destination：Russia
Item:500KG/H PP woven bag crushing washing drying squeezing line
Raw material:PP woven bags
Final product : Clean film scraps
The PP woven bag crushing washing drying squeezing line include below items:
No | Equipment Name | Qty. |
1 | L-type Feeding conveyor(with metal detector) | 1 |
2 | Single shaft shredder | 1 |
3 | Screw loader | 1 |
4 | Sedimentation separator(Run side by side) | 2 |
5 | Screw loader | 1 |
6 | High speed friction washer | 1 |
7 | Floating washer | 1 |
7-1 | Screw loader | 1 |
8 | Friction washer | 1 |
9 | Centrifugal de-watering machine | 1 |
10 | Screw loader | 1 |
11 | Floating washer | 1 |
11-1 | Screw loader | 1 |
12 | Friction washer | 1 |
13 | Rotary spin(Squeezing machine) | 1 |
14 | Silo | 1 |
15 | Belt conveyor | 1 |
16 | Electric cabinet | 1 |
17 | Wires | / |

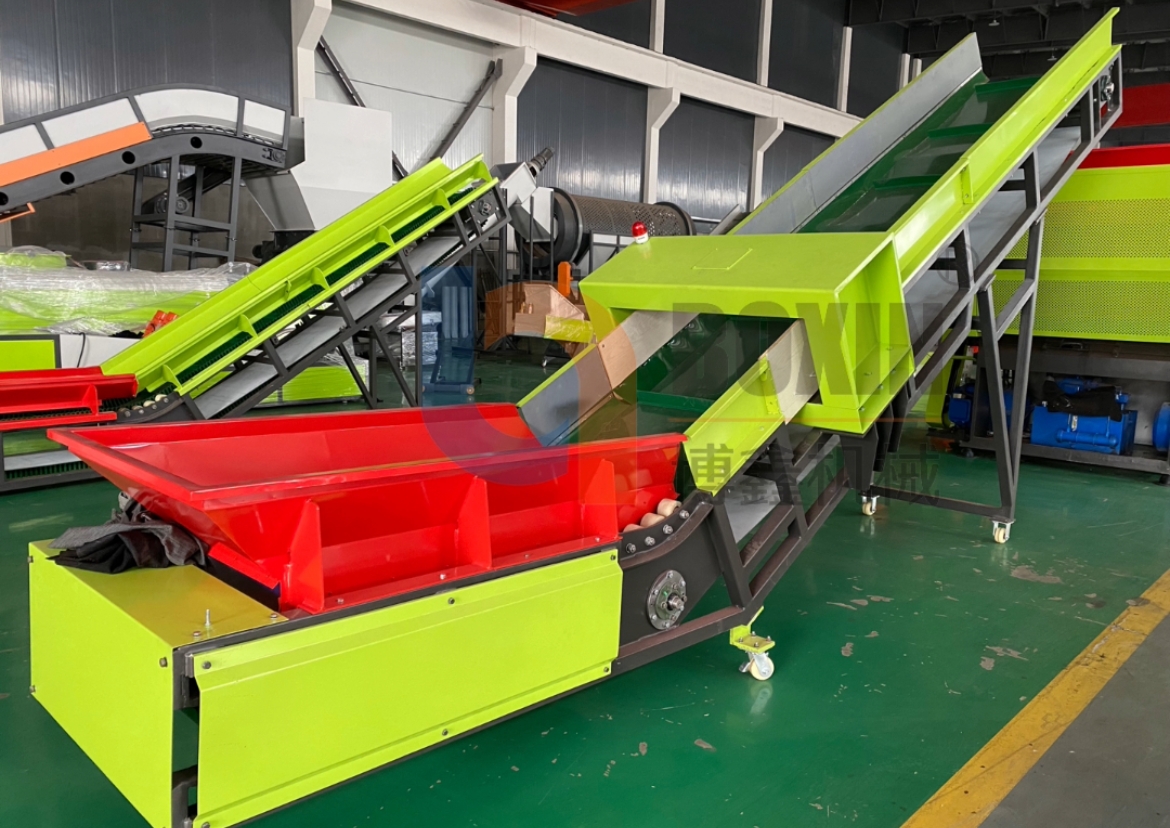

L-type Feeding conveyor(with metal detector):
For transporting film to next step，More suitable for film materials.

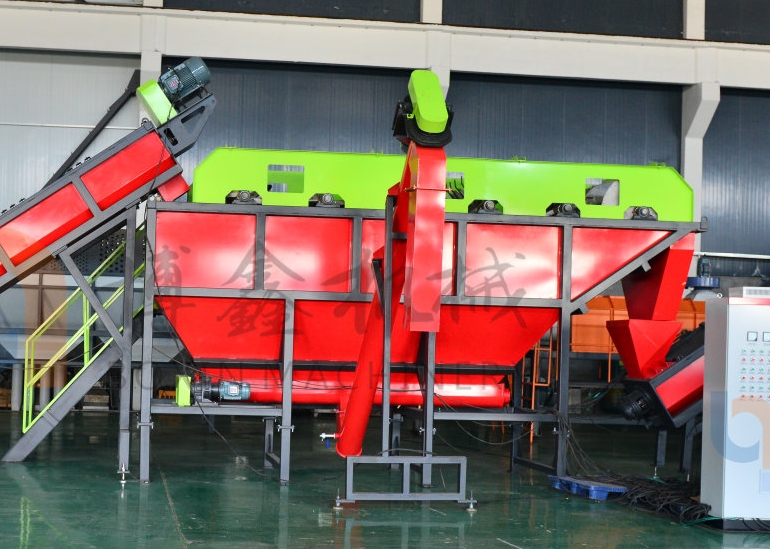

Floating washer with bottom screw :Floating washer can Separate impurities such as sediment,etc. Bottom screw purpose transport the heavy slag at the bottom of the sedimentation separator.

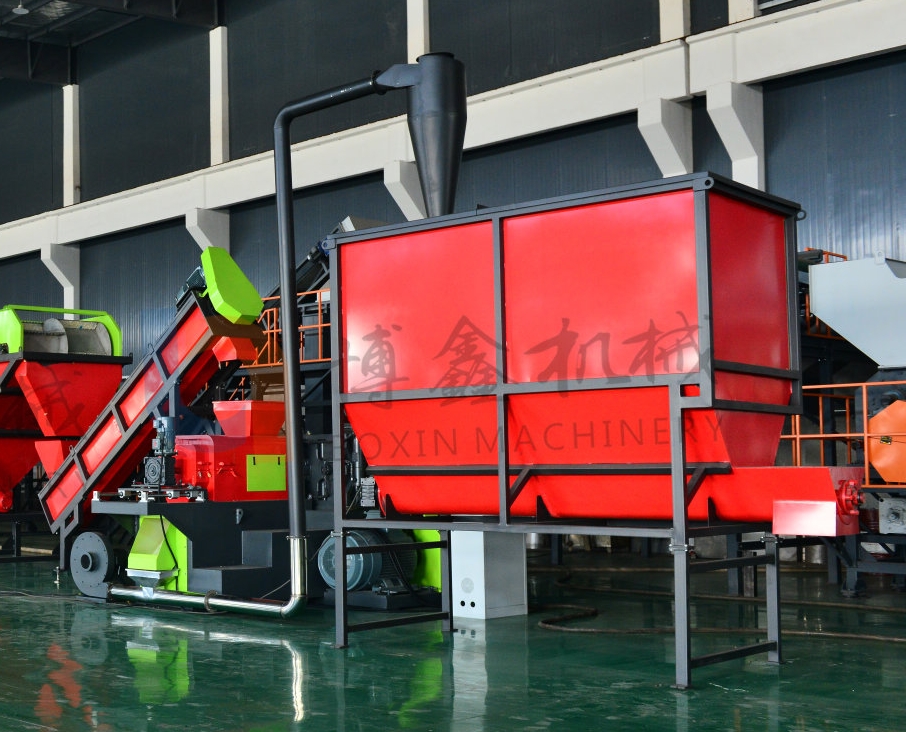

Large storage Temporary :storage of materials,The part in contact with the material is made of stainless steel 304.
