Views: 29 Author: Daisy Zan Publish Time: 2021-10-04 Origin: Boxin Machinery
Boxin DJ120 pelletizing line for PP film adopts the Newest design, has the characteristics of high output, high efficiency, low noise, etc., and can be customized according to the needs of customers.The plastic particles are smooth and full.
Location : Russia
Raw material : PE films

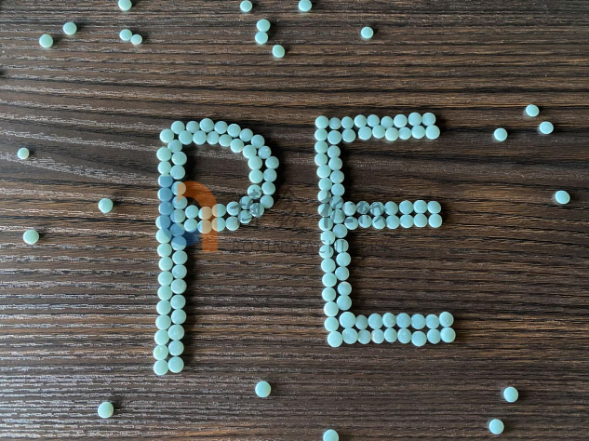

Final product : PE granules
Output capacity : 300-400kg/h,depends on material’s characteristics
Central height : 1.14m
Power supply:
Supply voltage: 3*380V+N+PE;
Voltage tolerance: +10%/-5%;
Control voltage: 24VDC+220VAC;
Frequency: 50Hz+-2%
Water Consumption: 0.6T/h (water recycles)
Final product: PE granules

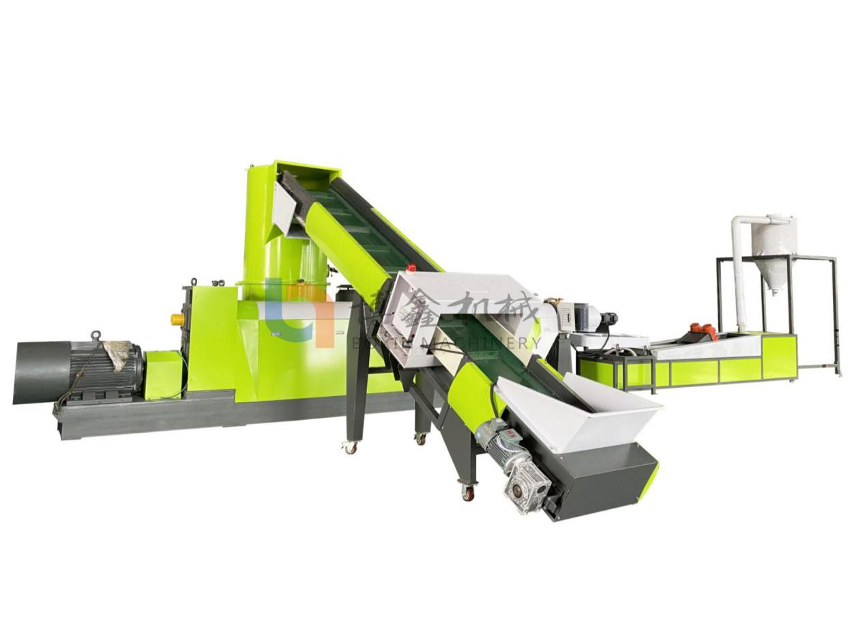

The complete PE film pelletizing line include below items：
No. | Name | Qty(set) |
1 | Belt conveyor(with Metal detector) | 1 |
2 | Whole film traction device | 1 |
3 | Compactor | 1 |
4 | DJ120/33 Single screw extruder | 1 |
5 | Plate type hydraulic screen changer400 | 1 |
6 | Water ring cutting system | 1 |
7 | Vibrating screen dewatering machine | 1 |
8 | silo | 1 |
9 | Electric cabinet | 1 |
We can also customize two-stage granulation and other models, welcome to inquire!

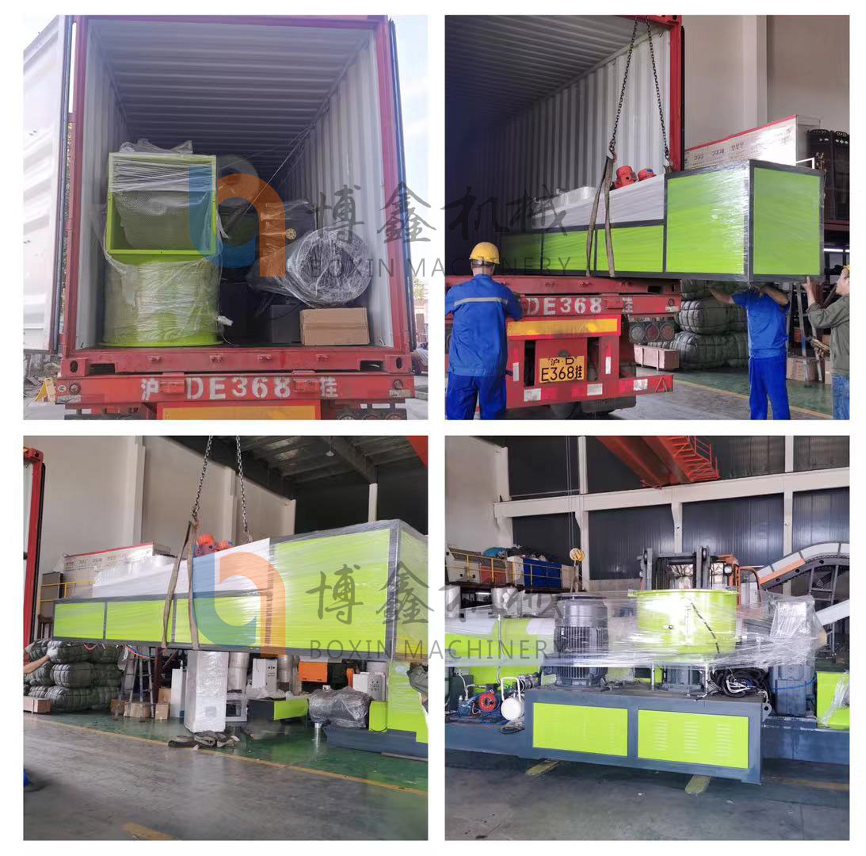

Shipping Photos：
