2000KG/H LDPE PE Film Recycling Washing Production Line with film squeeizer

2000KG/H LDPE PE Film Recycling Washing Production Line with film squeeizer

With years of experience in technology modification and process, MaxicoM has a wide range of different PE waste recycling solutions (LDPE/LLDPE film, PE bags).
MaxicoM adopts an advanced modular design, which allows free combination of each standard module to provide specialized solutions for customers.

Model:
BXC-2000
Brand:
BOXIN

Availability:

Range Of Application

Applications:

1. Recycling PE PP bag, woven bag, jumbo bags
2. Car cover, PE ground film
3. Agricultural film
4. PE PP mulching film

Plastic Film Recycling Machine

waste film material

Product Features

The complete 2000kg/h LDPE Film washing production line include below items:

Belt Conveyor
Crusher
Screw Loader
Friction Washer
Floating washer
5-1 Bottom Screw
Friction Washer
Floating washer
7-1 Bottom Screw
Scew Loader
Two Way screw loader
Film squeeizing Machine
Silo
Electric Cabinet

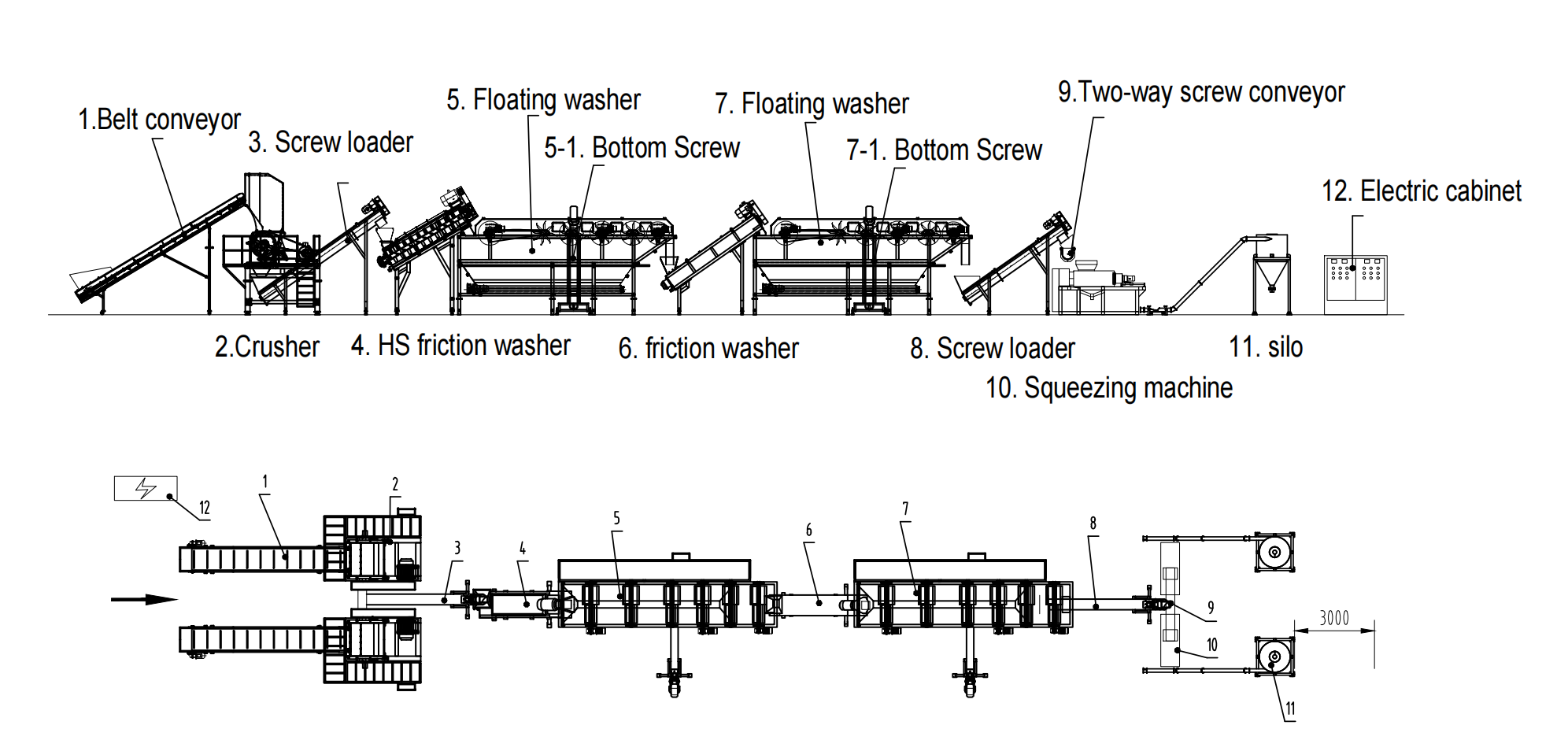

Drawing of PE film washing production line 2000kg/h:

PE film washing line 2000kg:h drawing

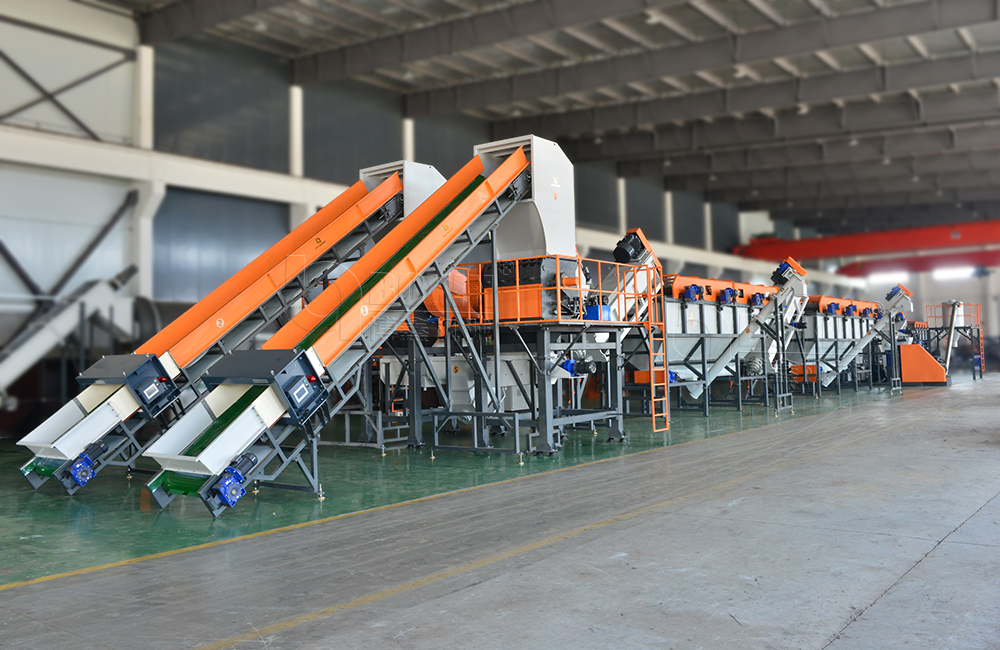

DSC_3121-有logo 1000

Technical Data

All the model of PE film washing line Technical Parameter:

Model	BXB-300	BXB-500	BXB-1000	BXB-1500	BXB-2000
Output（KG/H）	300	500	1000	1500	2000
Water Consumption（T/H）	2-3	4-6	6-8	8-10	10-15
Installed power (KW)	100-130	130-160	180-260	280-320	350-450
Labor Requirements	2-3	2-3	3-5	3-5	4-6
Factory area (L×W×H) M	30×4×5	40×4×5	45×6×5	48×6×5	55×7×5
