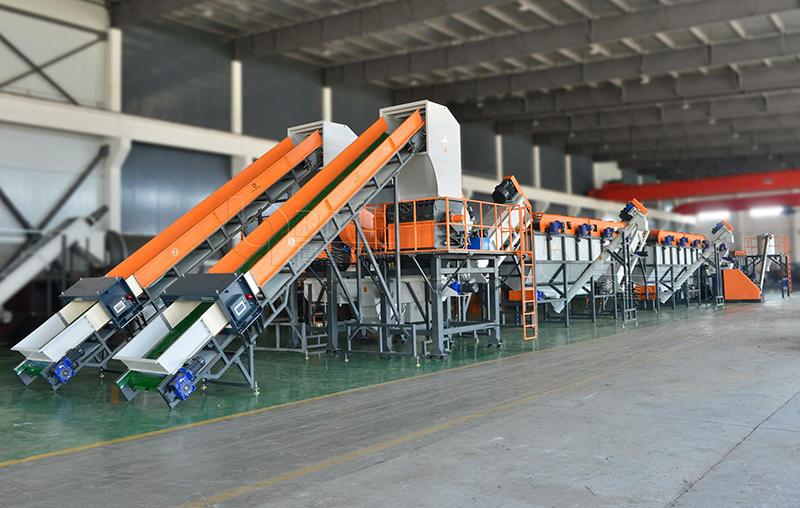

2000KG/H PP PE film washing line with Squeezing Machine

BOXIN 2000KG/H PP PE washing line

------Zhangjiagang Boxin Machinery

Customer Destination: Southeast Asia

Project: 2000KG/H PP PE film washing line

Total electric needed：About 757KW KW (actual consumption:70-80%)

One-time water injection: 10 tons/h (water treatment must be installed, 500kg of water per /hour)

Delivery time: 70 days after receiving the advance payment;

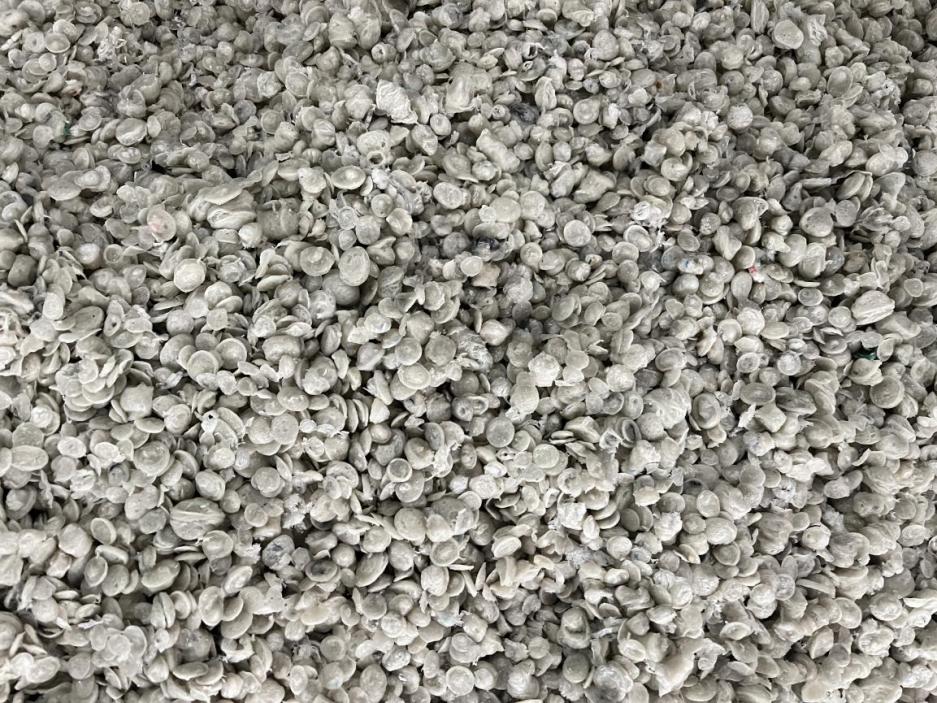

Final products: Clean film granules 5-8mm.

With the development of the times and technology, Zhangjiagang Boxin Machinery is constantly innovating and introducing new technologies that keep pace with the times when exploring the green low-carbon recycling road of plastic recycling. A series of new designs are adopted in the newly launched 2000kg/h PP PE washing line solution.

Main Products More details and specifications:

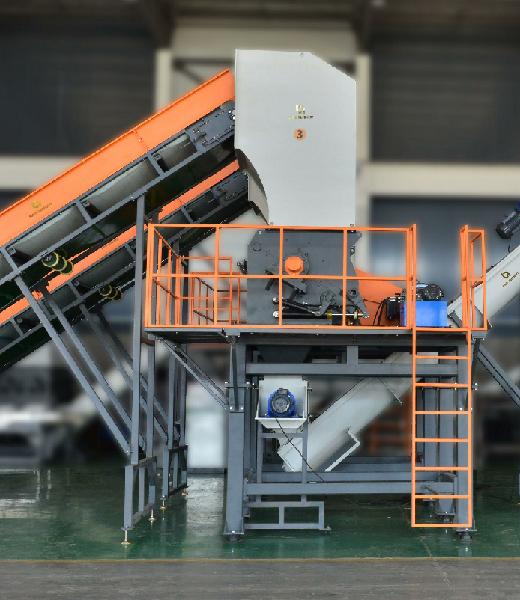

1. Wet Grinder - two sets (parallel)

• D2 Blades

• 10 Rotating Blades/4 Fixing Blades

• Special design suit for plastic waste films grinding

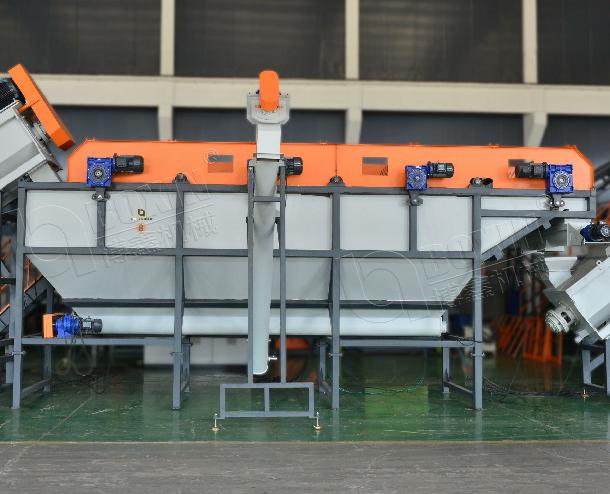

2. Separation tank

• Bottom spiral slag discharge+side spiral slag discharge, making waste discharge easier

• The chain continuously pushes the materials, so that the materials can be continuously cleaned and transported forward to achieve high output

• Tank drums are designed for high pressure underwater cleaning. Maximum removal of residual impurities, Separation of materials with different specific gravity, The discharge is designed for continuous claw drive to ensure uniform and continuous discharge while controlling the moisture content.

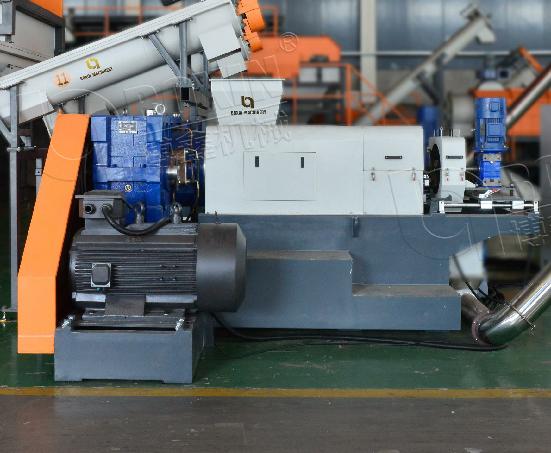

3. Film Squeezing machine

• Mainly used for semi-plasticizing and cutting of films.

• The special-structured screw runs at high pressure to remove moisture.

• The electromagnetic heater semi-plasticizes the film, extrudes it through the die, and the high-speed rotating cutter head uniformly cuts the pellets.
